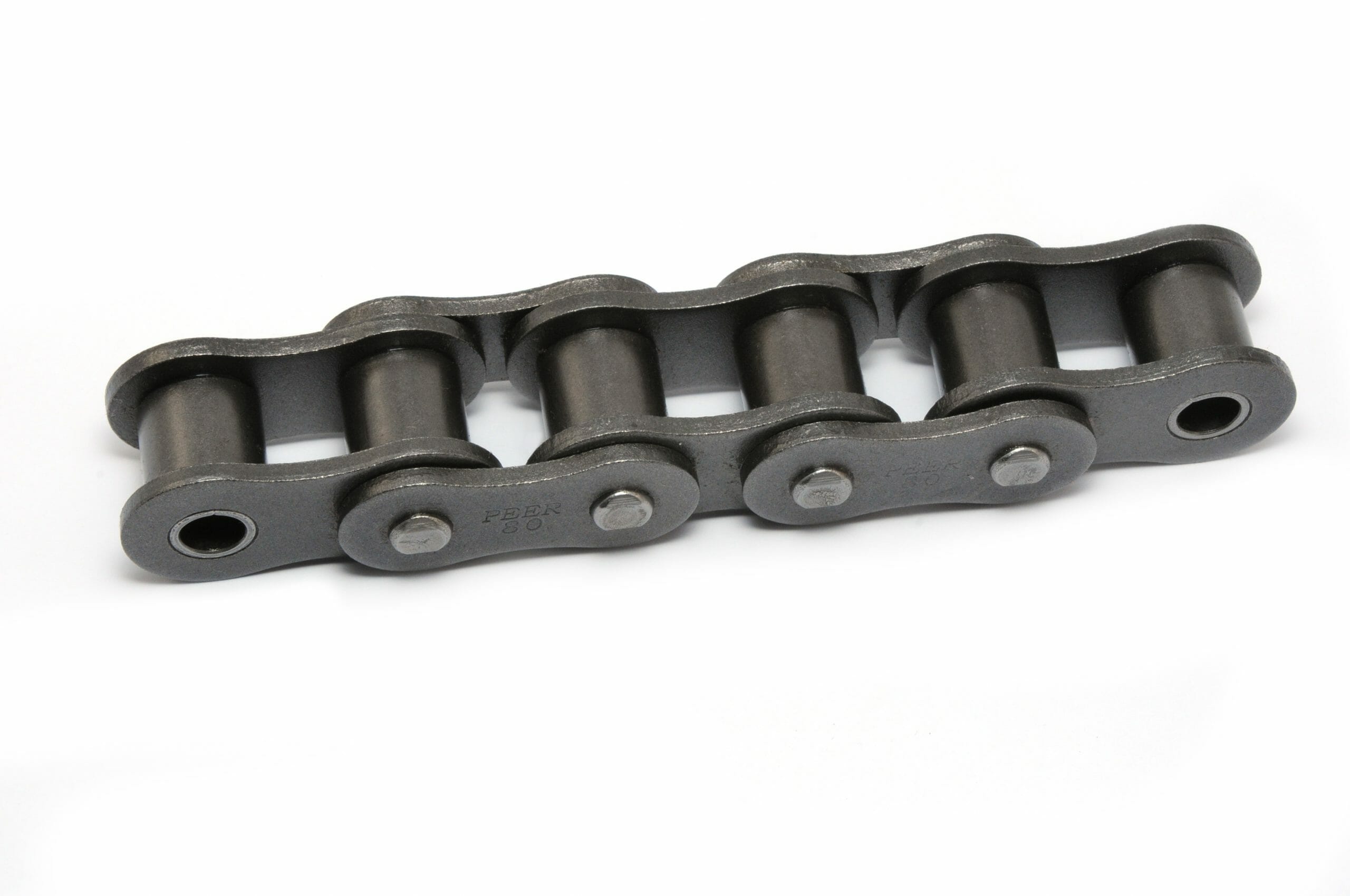

ANSI Standard Roller Chain

– All PEER roller chains incorporate solid rollers enhancing rotation on the bushing while reducing impact loads on the sprocket tooth during operation.

– All chain components are heat treated to achieve maximum strength and greater wear resistance.

– All PEER roller chain is pre-loaded during the manufacturing process to minimize initial elongation.

– Hot dipped lubrication ensures 100% lubrication of all chain components to extend wear life and reduce maintenance costs.

Add To Favorite Products List

SKU: 5302 Categories: Agricultural Machinery Chains, ANSI Standard Roller Chain, Citrus Industry Chains, Construction Equipment Chains, Conveyor Chains, Food Industry Chains, Lumber-Wood Industry Chains, Roller Chain, Sewage Treatment Chains, Standard Roller Chain Tags: 25 Roller Chain, 25R Roller Chain, Roller, Roller Chain, Single

Part No.	25R	25R	35R	35R	40R	40R	41R	41R	50R	50R	60R	60R	80R	80R	100R	100R	120R	120R	140R	140R	160R	160R	180R	180R	200R	200R	240R	240R
Industry No.	25	35	40	41	50	60	80	100	120	140	160	180	200	240

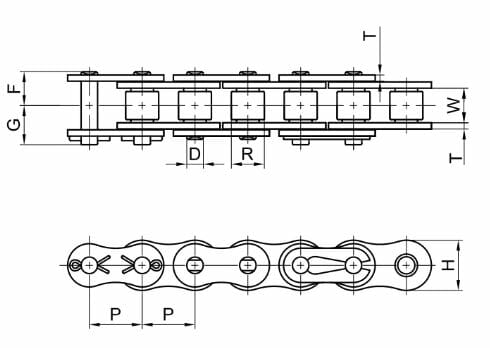

Pitch (P)	0.250	0.375	0.500	0.500	0.625	0.750	1.000	1.250	1.500	1.750	2.000	2.250	2.500	3.000
Roller Width (W)	0.125	0.188	0.312	0.306	0.400	0.500	0.625	0.750	1.000	1.000	1.250	1.406	1.500	1.875
Roller Diameter (R)	0.130	0.174	0.312	0.250	0.375	0.469	0.625	0.625	0.875	1.000	1.125	1.406	1.562	1.875
Plate Height (H)	0.228	0.356	0.475	0.390	0.594	0.712	0.950	1.187	1.425	1.662	1.900	2.137	2.375	2.850
Plate Thickness (T)	0.03	0.050	0.048	0.050	0.07	0.094	0.125	0.156	0.187	0.219	0.250	0.281	0.312	0.375
Pin Diameter (D)	0.091	0.142	0.157	0.142	0.200	0.235	0.313	0.376	0.437	0.500	0.563	0.687	0.781	0.937
Overall Width (F)	0.154	0.232	0.324	0.263	0.400	0.501	0.650	0.781	1.005	1.074	1.290	1.443	1.589	1.943
Overall Width (G)	0.185	0.277	0.406	0.334	0.488	0.601	0.803	0.950	1.174	1.267	1.459	1.659	1.825	2.179
Unit of Measure (Inches or Millimeters)	in	in	in	in	in	in	in	in	in	in	in	in	in	in
Average Tensile Strength (Lbs.)	1,036	2,469	4,188	2,866	6,834	9,259	17,636	25,353	34,392	46,297	57,761	84,216	109,128	154,323
Average Weight Per Foot (Lbs./Ft.)	0.087	0.215	0.417	0.276	0.679	0.974	1.714	2.654	3.79	4.959	6.317	8.514	10.684	16.396
