Roller chains are the backbone of countless power transmission, agricultural, and industrial applications, offering unmatched reliability for moving parts. Since their invention in 1880, they’ve powered everything from conveyors and automotive systems to food and beverage machinery and farming equipment. Whether you're maintaining equipment or building something new, this roller chain size chart is your go-to guide for finding the perfect chain to meet your replacement or OEM needs.
How To Measure Roller Chain
Whether you're building something from scratch or making an update to an existing project, finding the right size for your roller chain is a critical first decision. In order to accurately measure roller chain, you'll need to know the overall width, diameter and width of the roller, plate thickness and height.

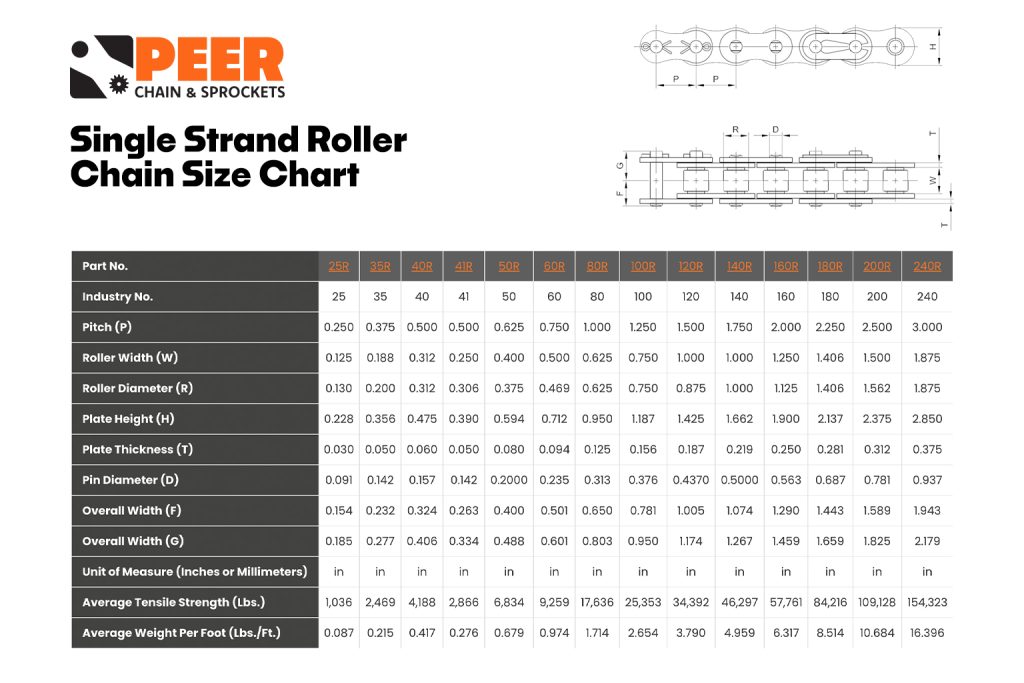

Single Strand Roller Chain Size Chart
Looking for a reliable solution to keep your machinery running at peak performance? PEER Chain & Sprockets single strand roller chains are designed with durability and efficiency in mind, making them the perfect fit for a variety of industries:
- Hot-dipped for superior lubrication: Each chain is 100% lubricated to maximize performance and extend wear life.
- Heat-treated for wear resistance: Built to withstand tough conditions and maintain long-term reliability.
- Pre-loaded for minimal elongation: Ensures your chain is ready to perform immediately, reducing the need for adjustments.
- Versatile applications: Ideal for conveyors, the food industry, and more.
- Trusted support: PEER Chain & Sprockets experts are here to help minimize downtime and keep your operations running smoothly.
When efficiency matters, PEER Chain & Sprockets single strand roller chains deliver unmatched quality and performance.
Part No. | 25R | 35R | 40R | 41R | 50R | 60R | 80R | 100R | 120R | 140R | 160R | 180R | 200R | 240R |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Industry No. | 25 | 35 | 40 | 41 | 50 | 60 | 80 | 100 | 120 | 140 | 160 | 180 | 200 | 240 |
Pitch (P) | 0.250 | 0.375 | 0.500 | 0.500 | 0.625 | 0.750 | 1.000 | 1.250 | 1.500 | 1.750 | 2.000 | 2.250 | 2.500 | 3.000 |
Roller Width (W) | 0.125 | 0.188 | 0.312 | 0.250 | 0.400 | 0.500 | 0.625 | 0.750 | 1.000 | 1.000 | 1.250 | 1.406 | 1.500 | 1.875 |
Roller Diameter (R) | 0.130 | 0.200 | 0.312 | 0.306 | 0.375 | 0.469 | 0.625 | 0.750 | 0.875 | 1.000 | 1.125 | 1.406 | 1.562 | 1.875 |
Plate Height (H) | 0.228 | 0.356 | 0.475 | 0.390 | 0.594 | 0.712 | 0.950 | 1.187 | 1.425 | 1.662 | 1.900 | 2.137 | 2.375 | 2.850 |
Plate Thickness (T) | 0.030 | 0.050 | 0.060 | 0.050 | 0.080 | 0.094 | 0.125 | 0.156 | 0.187 | 0.219 | 0.250 | 0.281 | 0.312 | 0.375 |
Pin Diameter (D) | 0.091 | 0.142 | 0.157 | 0.142 | 0.2000 | 0.235 | 0.313 | 0.376 | 0.4370 | 0.5000 | 0.563 | 0.687 | 0.781 | 0.937 |
Overall Width (F) | 0.154 | 0.232 | 0.324 | 0.263 | 0.400 | 0.501 | 0.650 | 0.781 | 1.005 | 1.074 | 1.290 | 1.443 | 1.589 | 1.943 |
Overall Width (G) | 0.185 | 0.277 | 0.406 | 0.334 | 0.488 | 0.601 | 0.803 | 0.950 | 1.174 | 1.267 | 1.459 | 1.659 | 1.825 | 2.179 |
Unit of Measure (Inches or Millimeters) | in | in | in | in | in | in | in | in | in | in | in | in | in | in |
Average Tensile Strength (Lbs.) | 1,036 | 2,469 | 4,188 | 2,866 | 6,834 | 9,259 | 17,636 | 25,353 | 34,392 | 46,297 | 57,761 | 84,216 | 109,128 | 154,323 |
Average Weight Per Foot (Lbs./Ft.) | 0.087 | 0.215 | 0.417 | 0.276 | 0.679 | 0.974 | 1.714 | 2.654 | 3.790 | 4.959 | 6.317 | 8.514 | 10.684 | 16.396 |

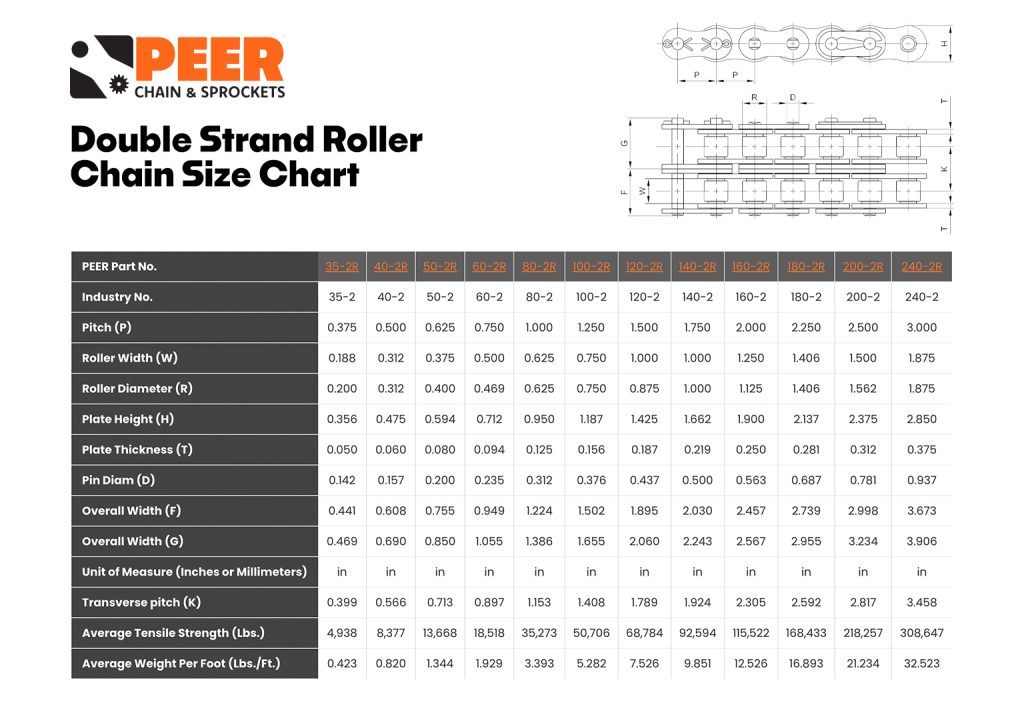

Double Strand Roller Chain Size Chart
When your operations demand extra strength and durability, PEER Chain & Sprockets double strand roller chains deliver exceptional performance. Designed for heavier-duty applications, these chains are built to last while reducing maintenance costs:
- Solid rollers for smoother operation: Enhanced rotation reduces impact loads on sprocket teeth, ensuring a longer lifespan.
- Heat-treated for maximum strength: Each component is treated for wear resistance and reliability in tough conditions.
- Pre-loaded for minimal elongation: Manufactured to limit initial stretching, providing immediate and consistent performance.
- Perfect for heavy-duty applications: Ideal for industries requiring robust solutions for demanding tasks.
- Low maintenance, high reliability: Engineered for fantastic wear life, keeping your operations running smoothly.
PEER Chain & Sprockets double strand roller chains combine strength and precision, ensuring your equipment meets its toughest challenges with ease.
PEER Part No. | 35-2R | 40-2R | 50-2R | 60-2R | 80-2R | 100-2R | 120-2R | 140-2R | 160-2R | 180-2R | 200-2R | 240-2R |
---|---|---|---|---|---|---|---|---|---|---|---|---|
Industry No. | 35-2 | 40-2 | 50-2 | 60-2 | 80-2 | 100-2 | 120-2 | 140-2 | 160-2 | 180-2 | 200-2 | 240-2 |
Pitch (P) | 0.375 | 0.500 | 0.625 | 0.750 | 1.000 | 1.250 | 1.500 | 1.750 | 2.000 | 2.250 | 2.500 | 3.000 |
Roller Width (W) | 0.188 | 0.312 | 0.375 | 0.500 | 0.625 | 0.750 | 1.000 | 1.000 | 1.250 | 1.406 | 1.500 | 1.875 |
Roller Diameter (R) | 0.200 | 0.312 | 0.400 | 0.469 | 0.625 | 0.750 | 0.875 | 1.000 | 1.125 | 1.406 | 1.562 | 1.875 |
Plate Height (H) | 0.356 | 0.475 | 0.594 | 0.712 | 0.950 | 1.187 | 1.425 | 1.662 | 1.900 | 2.137 | 2.375 | 2.850 |
Plate Thickness (T) | 0.050 | 0.060 | 0.080 | 0.094 | 0.125 | 0.156 | 0.187 | 0.219 | 0.250 | 0.281 | 0.312 | 0.375 |
Pin Diam (D) | 0.142 | 0.157 | 0.200 | 0.235 | 0.312 | 0.376 | 0.437 | 0.500 | 0.563 | 0.687 | 0.781 | 0.937 |
Overall Width (F) | 0.441 | 0.608 | 0.755 | 0.949 | 1.224 | 1.502 | 1.895 | 2.030 | 2.457 | 2.739 | 2.998 | 3.673 |
Overall Width (G) | 0.469 | 0.690 | 0.850 | 1.055 | 1.386 | 1.655 | 2.060 | 2.243 | 2.567 | 2.955 | 3.234 | 3.906 |
Unit of Measure (Inches or Millimeters) | in | in | in | in | in | in | in | in | in | in | in | in |
Transverse pitch (K) | 0.399 | 0.566 | 0.713 | 0.897 | 1.153 | 1.408 | 1.789 | 1.924 | 2.305 | 2.592 | 2.817 | 3.458 |
Average Tensile Strength (Lbs.) | 4,938 | 8,377 | 13,668 | 18,518 | 35,273 | 50,706 | 68,784 | 92,594 | 115,522 | 168,433 | 218,257 | 308,647 |
Average Weight Per Foot (Lbs./Ft.) | 0.423 | 0.820 | 1.344 | 1.929 | 3.393 | 5.282 | 7.526 | 9.851 | 12.526 | 16.893 | 21.234 | 32.523 |
Triple Strand Roller Chain Size Chart
For your toughest jobs, PEER Chain & Sprockets triple strand roller chains deliver unmatched strength and reliability. Engineered for heavy-duty applications, these chains provide optimal performance and exceptional wear life:
- Enhanced durability: Solid rollers improve rotation and reduce impact loads on sprocket teeth, extending chain and sprocket life.
- Heat-treated for strength: Built to withstand significant pressure in demanding environments.
- Pre-loaded for precision: Designed to minimize initial elongation, ensuring reliable performance from the start.
- Versatile applications: Perfect for industries such as agriculture, sewage, and machinery.
- Efficient and effective: Reduces downtime while handling heavy loads with ease.
PEER Chain & Sprockets triple strand roller chains are the robust solution you need to keep your operations running smoothly, no matter the challenge.
PEER Part No. | 35-3R | 40-3R | 50-3R | 60-3R | 80-3R | 100-3R | 120-3R | 140-3R | 160-3R | 180-3R | 200-3R | 240-3R |
---|---|---|---|---|---|---|---|---|---|---|---|---|
Industry No. | 35-3 | 40-3 | 50-3 | 60-3 | 80-3 | 100-3 | 120-3 | 140-3 | 160-3 | 180-3 | 200-3 | 240-3 |
Pitch (P) | 0.375 | 0.500 | 0.625 | 0.750 | 1.000 | 1.250 | 1.500 | 1.750 | 2.000 | 2.250 | 2.500 | 3.000 |
Roller Width (W) | 0.188 | 0.312 | 0.375 | 0.500 | 0.625 | 0.750 | 1.000 | 1.000 | 1.250 | 1.406 | 1.500 | 1.875 |
Roller Diameter (R) | 0.200 | 0.312 | 0.400 | 0.469 | 0.625 | 0.750 | 0.875 | 1.000 | 1.125 | 1.406 | 1.562 | 1.875 |
Plate Height (H) | 0.356 | 0.475 | 0.594 | 0.712 | 0.950 | 1.187 | 1.425 | 1.662 | 1.900 | 2.137 | 2.375 | 2.850 |
Plate Thickness (T) | 0.050 | 0.060 | 0.080 | 0.094 | 0.125 | 0.156 | 0.187 | 0.219 | 0.250 | 0.281 | 0.312 | 0.375 |
Pin Diam (D) | 0.142 | 0.157 | 0.200 | 0.235 | 0.313 | 0.376 | 0.437 | 0.500 | 0.563 | 0.687 | 0.781 | 0.937 |
Overall Width (F) | 0.633 | 0.890 | 1.113 | 1.400 | 1.799 | 2.224 | 2.773 | 2.997 | 3.613 | 4.035 | 4.406 | 5.402 |
Overall Width (G) | 0.677 | 0.975 | 1.207 | 1.506 | 1.965 | 2.338 | 2.974 | 3.194 | 3.691 | 4.251 | 4.642 | 5.638 |
Unit of Measure (Inches or Millimeters) | in | in | in | in | in | in | in | in | in | in | in | in |
Transverse pitch (K) | 0.399 | 0.566 | 0.713 | 0.897 | 1.153 | 1.408 | 1.789 | 1.924 | 2.305 | 2.592 | 2.817 | 3.458 |
Average Tensile Strength (Lbs.) | 7,407 | 12,566 | 20,502 | 27,778 | 52,910 | 76,059 | 103,176 | 138,891 | 173,283 | 252,649 | 327,386 | 462,970 |
Average Weight Per Foot (Lbs./Ft.) | 0.631 | 1.223 | 2.002 | 2.876 | 5.067 | 7.896 | 11.242 | 14.736 | 18.741 | 25.266 | 31.784 | 48.651 |

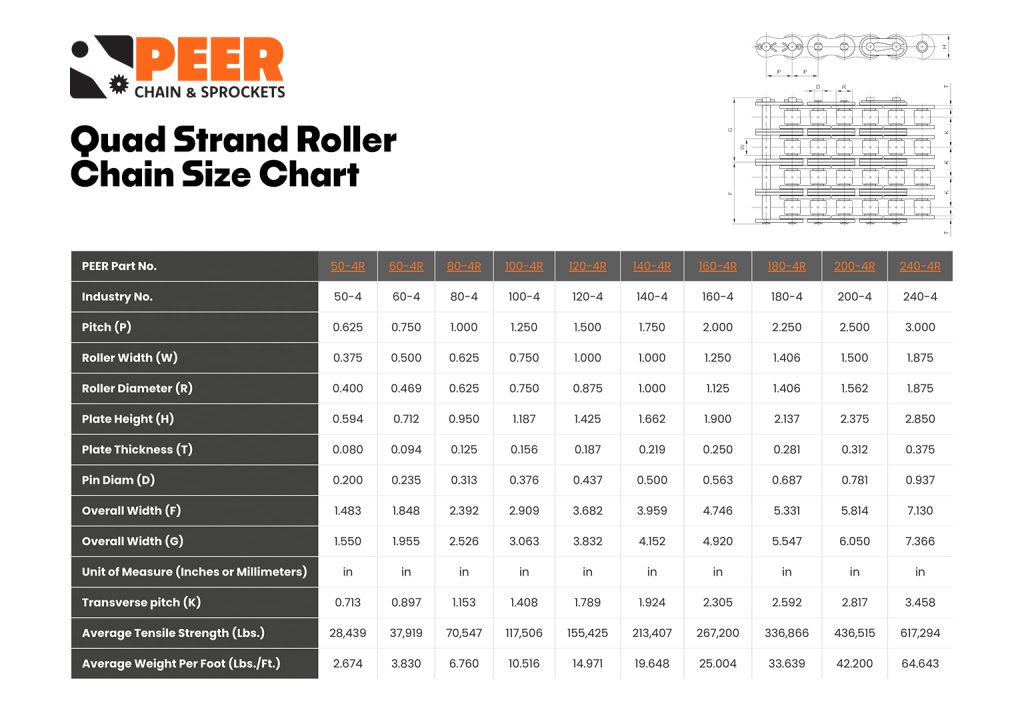

Quad Strand Roller Chain Size Chart
For the most demanding industries, PEER Chain & Sprockets quad strand roller chains are built to handle the challenge with precision and strength. Designed for heavy-duty applications, these chains deliver maximum performance and durability to keep your operations running smoothly:
- Solid rollers for reduced impact: Enhance rotation and minimize sprocket tooth wear for longer equipment life.
- Heat-treated components: Built for exceptional strength and wear resistance in demanding environments.
- Pre-loaded for efficiency: Reduces initial elongation, ensuring consistent performance right from the start.
- 100% lubricated for reliability: Provides smooth operation and reduces maintenance needs.
- Ideal for heavy-duty applications: Perfect for industries requiring robust solutions to minimize downtime.
When it’s time to tackle serious work, PEER Chain & Sprockets quad strand roller chains deliver the power and reliability you need. Reach out to our experts for help with sizing and selection to ensure the perfect fit.
PEER Part No. | 50-4R | 60-4R | 80-4R | 100-4R | 120-4R | 140-4R | 160-4R | 180-4R | 200-4R | 240-4R |
---|---|---|---|---|---|---|---|---|---|---|
Industry No. | 50-4 | 60-4 | 80-4 | 100-4 | 120-4 | 140-4 | 160-4 | 180-4 | 200-4 | 240-4 |
Pitch (P) | 0.625 | 0.750 | 1.000 | 1.250 | 1.500 | 1.750 | 2.000 | 2.250 | 2.500 | 3.000 |
Roller Width (W) | 0.375 | 0.500 | 0.625 | 0.750 | 1.000 | 1.000 | 1.250 | 1.406 | 1.500 | 1.875 |
Roller Diameter (R) | 0.400 | 0.469 | 0.625 | 0.750 | 0.875 | 1.000 | 1.125 | 1.406 | 1.562 | 1.875 |
Plate Height (H) | 0.594 | 0.712 | 0.950 | 1.187 | 1.425 | 1.662 | 1.900 | 2.137 | 2.375 | 2.850 |
Plate Thickness (T) | 0.080 | 0.094 | 0.125 | 0.156 | 0.187 | 0.219 | 0.250 | 0.281 | 0.312 | 0.375 |
Pin Diam (D) | 0.200 | 0.235 | 0.313 | 0.376 | 0.437 | 0.500 | 0.563 | 0.687 | 0.781 | 0.937 |
Overall Width (F) | 1.483 | 1.848 | 2.392 | 2.909 | 3.682 | 3.959 | 4.746 | 5.331 | 5.814 | 7.130 |
Overall Width (G) | 1.550 | 1.955 | 2.526 | 3.063 | 3.832 | 4.152 | 4.920 | 5.547 | 6.050 | 7.366 |
Unit of Measure (Inches or Millimeters) | in | in | in | in | in | in | in | in | in | in |
Transverse pitch (K) | 0.713 | 0.897 | 1.153 | 1.408 | 1.789 | 1.924 | 2.305 | 2.592 | 2.817 | 3.458 |
Average Tensile Strength (Lbs.) | 28,439 | 37,919 | 70,547 | 117,506 | 155,425 | 213,407 | 267,200 | 336,866 | 436,515 | 617,294 |
Average Weight Per Foot (Lbs./Ft.) | 2.674 | 3.830 | 6.760 | 10.516 | 14.971 | 19.648 | 25.004 | 33.639 | 42.200 | 64.643 |

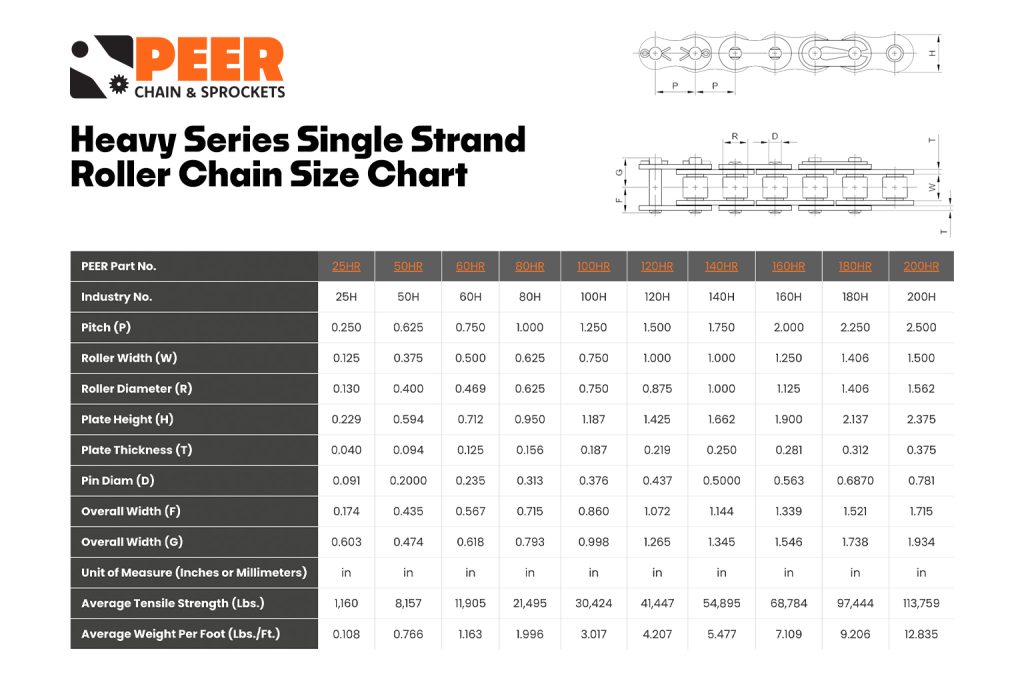

Heavy Series Single Strand Roller Chain Size Chart
When power and durability are a must in tight spaces, PEER Chain & Sprockets Heavy Series Single Strand Chains are the ideal solution. Designed to handle demanding tasks, these chains offer unmatched reliability and performance:
- Thick side plates for added strength: Built to handle high power transmission with ease.
- Hot-dipped lubrication: Enhances wear life and ensures each component operates smoothly.
- Pre-loaded for minimal elongation: Reduces the need for adjustments during initial use.
- Solid rollers for efficiency: Improves rotation on the bushing and minimizes impact loads on sprocket teeth.
- Heat-treated for maximum durability: Provides exceptional strength and wear resistance for long-term performance.
For heavy-duty applications, PEER Chain & Sprockets Heavy Series Single Strand Chains deliver power you can count on. Contact our Engineering Experts to find the perfect solution for your needs.
PEER Part No. | 25HR | 50HR | 60HR | 80HR | 100HR | 120HR | 140HR | 160HR | 180HR | 200HR |
---|---|---|---|---|---|---|---|---|---|---|
Industry No. | 25H | 50H | 60H | 80H | 100H | 120H | 140H | 160H | 180H | 200H |
Pitch (P) | 0.250 | 0.625 | 0.750 | 1.000 | 1.250 | 1.500 | 1.750 | 2.000 | 2.250 | 2.500 |
Roller Width (W) | 0.125 | 0.375 | 0.500 | 0.625 | 0.750 | 1.000 | 1.000 | 1.250 | 1.406 | 1.500 |
Roller Diameter (R) | 0.130 | 0.400 | 0.469 | 0.625 | 0.750 | 0.875 | 1.000 | 1.125 | 1.406 | 1.562 |
Plate Height (H) | 0.229 | 0.594 | 0.712 | 0.950 | 1.187 | 1.425 | 1.662 | 1.900 | 2.137 | 2.375 |
Plate Thickness (T) | 0.040 | 0.094 | 0.125 | 0.156 | 0.187 | 0.219 | 0.250 | 0.281 | 0.312 | 0.375 |
Pin Diam (D) | 0.091 | 0.2000 | 0.235 | 0.313 | 0.376 | 0.437 | 0.5000 | 0.563 | 0.6870 | 0.781 |
Overall Width (F) | 0.174 | 0.435 | 0.567 | 0.715 | 0.860 | 1.072 | 1.144 | 1.339 | 1.521 | 1.715 |
Overall Width (G) | 0.603 | 0.474 | 0.618 | 0.793 | 0.998 | 1.265 | 1.345 | 1.546 | 1.738 | 1.934 |
Unit of Measure (Inches or Millimeters) | in | in | in | in | in | in | in | in | in | in |
Average Tensile Strength (Lbs.) | 1,160 | 8,157 | 11,905 | 21,495 | 30,424 | 41,447 | 54,895 | 68,784 | 97,444 | 113,759 |
Average Weight Per Foot (Lbs./Ft.) | 0.108 | 0.766 | 1.163 | 1.996 | 3.017 | 4.207 | 5.477 | 7.109 | 9.206 | 12.835 |

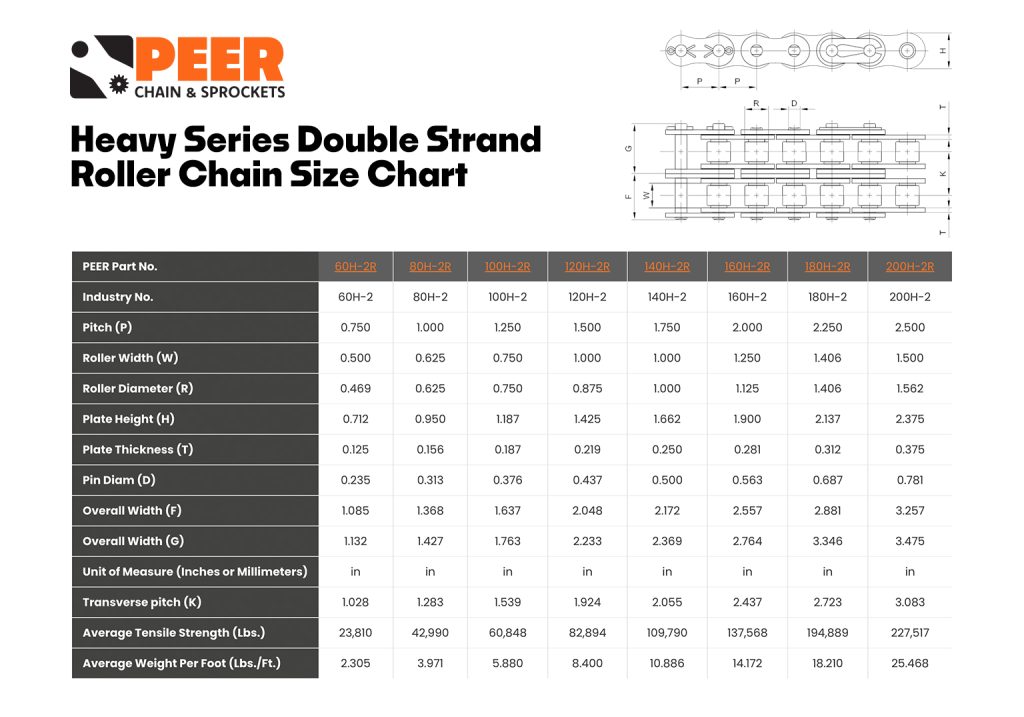

Heavy Series Double Strand Roller Chain Size Chart
When durability and performance are non-negotiable, PEER Chain & Sprockets Standard Heavy Double-Strand Chain is the reliable choice. Built to handle tough applications, these chains are designed for frequent use with minimal wear:
- Optional Quest technology: Solid bushings provide enhanced durability and long-lasting performance.
- 100% lubricated components: Ensures smooth operation and reduces wear during frequent use.
- Heat-treated for strength: Delivers maximum durability, strength, and wear resistance for demanding tasks.
- Pre-loaded for efficiency: Minimizes initial elongation, so your chain is ready to work right away.
- Versatile for various applications: Built to meet the needs of section-dependent operations.
Count on PEER Chain & Sprockets heavy-duty double-strand chains to keep your equipment running smoothly. Contact our roller chain specialists today for tailored solutions.
PEER Part No. | 60H-2R | 80H-2R | 100H-2R | 120H-2R | 140H-2R | 160H-2R | 180H-2R | 200H-2R |
---|---|---|---|---|---|---|---|---|
Industry No. | 60H-2 | 80H-2 | 100H-2 | 120H-2 | 140H-2 | 160H-2 | 180H-2 | 200H-2 |
Pitch (P) | 0.750 | 1.000 | 1.250 | 1.500 | 1.750 | 2.000 | 2.250 | 2.500 |
Roller Width (W) | 0.500 | 0.625 | 0.750 | 1.000 | 1.000 | 1.250 | 1.406 | 1.500 |
Roller Diameter (R) | 0.469 | 0.625 | 0.750 | 0.875 | 1.000 | 1.125 | 1.406 | 1.562 |
Plate Height (H) | 0.712 | 0.950 | 1.187 | 1.425 | 1.662 | 1.900 | 2.137 | 2.375 |
Plate Thickness (T) | 0.125 | 0.156 | 0.187 | 0.219 | 0.250 | 0.281 | 0.312 | 0.375 |
Pin Diam (D) | 0.235 | 0.313 | 0.376 | 0.437 | 0.500 | 0.563 | 0.687 | 0.781 |
Overall Width (F) | 1.085 | 1.368 | 1.637 | 2.048 | 2.172 | 2.557 | 2.881 | 3.257 |
Overall Width (G) | 1.132 | 1.427 | 1.763 | 2.233 | 2.369 | 2.764 | 3.346 | 3.475 |
Unit of Measure (Inches or Millimeters) | in | in | in | in | in | in | in | in |
Transverse pitch (K) | 1.028 | 1.283 | 1.539 | 1.924 | 2.055 | 2.437 | 2.723 | 3.083 |
Average Tensile Strength (Lbs.) | 23,810 | 42,990 | 60,848 | 82,894 | 109,790 | 137,568 | 194,889 | 227,517 |
Average Weight Per Foot (Lbs./Ft.) | 2.305 | 3.971 | 5.880 | 8.400 | 10.886 | 14.172 | 18.210 | 25.468 |
Functions of Roller Chains
In general, roller chains have four key functions:
- To move materials or objects from one location to another
- To transmit power
- To ensure that an action occurs consistently after the previous action over a period of time; i.e. synchronization
- To shift the direction of motion from linear to rotary
Roller chains have significant advantages over belt drives for these functions, as they have very little slippage or stretching across the chains even with a heavy load and are incredibly efficient and long-wearing. Our roller chains offer exceptional strength and durability, thanks to our effective heat treatments and 100% lubrication techniques. Roller chains are exceptional for use in a high-stress environment as they will hold up under even the most difficult conditions such as high and low temperature, or start-stop action usage. Regardless of industry, roller chains are necessary to keep operations running smoothly in various light and heavy-duty applications. By investing in quality roller chains for your day-to-day machinery, you are more likely to enjoy consistent and steady business. These roller chains also have a virtually unlimited shelf life as long as they are stored and maintained in the proper environment.
Sizes of Roller Chains
As you can see above in the roller chain size charts, there is a wide range of sizes that are available in this versatile chain. Single and multiple-strand roller chains are available, with different weight and tensile strength ratings based on the manufacturing requirements for their particular use. Since chains are used as a drive and as part of a conveyor system, the range of sizes can be quite significant. Smaller pitch chains are often found in light to moderate load applications while larger pitch chains are used in heavier load applications.
Roller chain sizes are standardized according to ANSI/ASME or ISO British standards, which are meant to provide interchangeability of design and dimensions for chains, sprockets, and attachments. Fortunately, you will find a wide range of options available at PEERChain.com. Before purchasing your very own roller chain, it is crucial to determine which size component will best suit your operational needs. If you aren’t sure which roller chain will work best for your applications, simply connect with one of our friendly experts.
Roller chain specification includes key values for:
- Size
- Pitch
- Roller Width and Diameter
- Average Ultimate Tensile Strength
- Sizes for ANSI/ASME standard roller chains range from 25 to 240.
Guide To Roller Chain Chart Size: What You Need to Know
Roller chains are essential components in countless industrial and mechanical applications, offering reliable performance for a variety of functions. They excel in moving materials, transmitting power, synchronizing sequential actions, and converting motion from linear to rotary. Unlike belt drives, roller chains provide minimal slippage, superior efficiency, and long-lasting durability, even under heavy loads or in high-stress environments. By understanding these product benefits, you can confidently select a roller chain built to handle your operational demands:
Functions of Roller Chains
- Material Movement: Efficiently transport objects or materials.
- Power Transmission: Reliably transfer power to moving parts.
- Synchronization: Maintain consistent action in timed sequences.
- Motion Conversion: Seamlessly shift motion from linear to rotary.
Roller Chain Sizes and Applications
- Smaller Pitch Chains: Ideal for light to moderate loads.
- Larger Pitch Chains: Built for heavy-duty applications.
- Single and Multi-Strand Options: Versatility to meet specific operational needs.
Strength That Matters
- Tensile Strength: Measures the one-time load a chain can withstand before breaking.
- Fatigue Strength: Indicates a chain's ability to endure continuous use over time without failing.
Whether you're looking for heavy, immediate loads or long-term durability, we’ve got you covered. Contact our experts today for personalized guidance and high-quality solutions tailored to your application. If you are attempting to match a chain or sprocket and don't see what you need, just let us know! We will find it for you.
