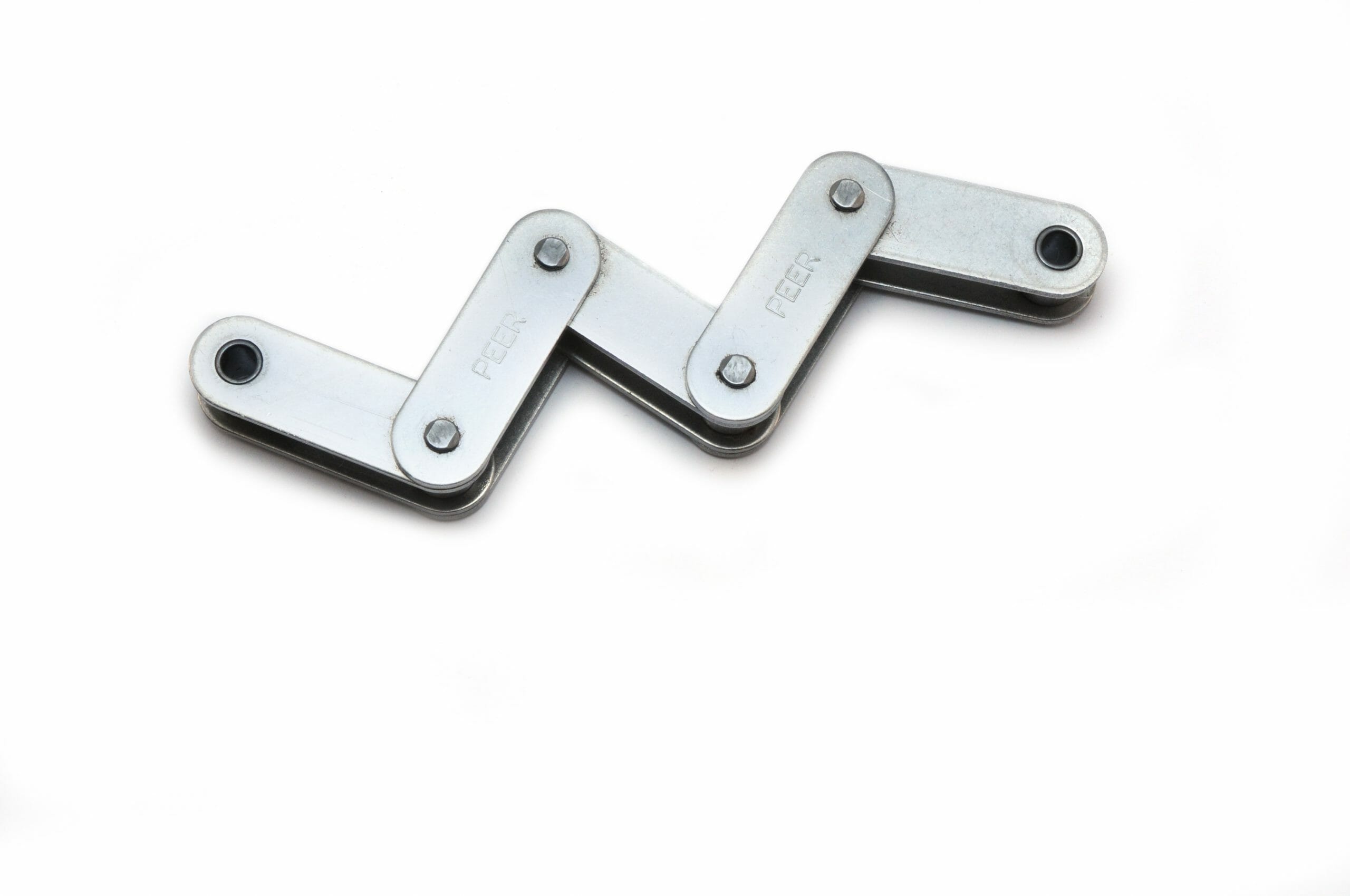

Zinc Plated Double Pitch Roller Chain – C Type

PEER Part No.	C2040RZP	C2042RZP	C2050RZP	C2052RZP	C2060HRZP	C2062HRZP	C2080HRZP	C2082HRZP
Industry No.	C2040ZP	C2042ZP	C2050ZP	C2052ZP	C2060HZP	C2062HZP	C2080HZP	C2082HZP
Pitch (P)	1.000	1.000	1.250	1.250	1.500	1.500	2.000	2.000
Roller Width (W)	0.312	0.312	0.375	0.375	0.500	0.500	0.625	0.625
Roller Diam. (R)	-	0.625	-	-	-	0.875	-	1.125
Plate Height (H)	0.475	0.475	0.594	0.750	0.712	0.712	0.950	0.950
Plate Thickness (T)	0.060	0.060	0.080	0.594	0.125	0.125	0.156	0.156
Pin	0.157	0.157	0.200	0.080	0.235	0.235	0.313	0.313
Overall Width (F)	0.324	0.324	0.400	0.200	0.567	0.567	0.715	0.715
Overall Width (G)	0.406	0.406	0.488	0.400	0.606	0.606	0.888	0.888
Unit of Measure (Inches or Millimeters)	in.	in.	in.	0.488	in.	in.	in.	in.
Average Tensile Strength (Lbs.)	3,330	3,330	5,490	in.	10,692	10,692	18,810	18,810
Average Weight Per Foot (Lbs./Ft.)	0.340	0.580	0.560	5,490	1.010	1.480	1.670	2.400
SELECT FOR QUOTE
