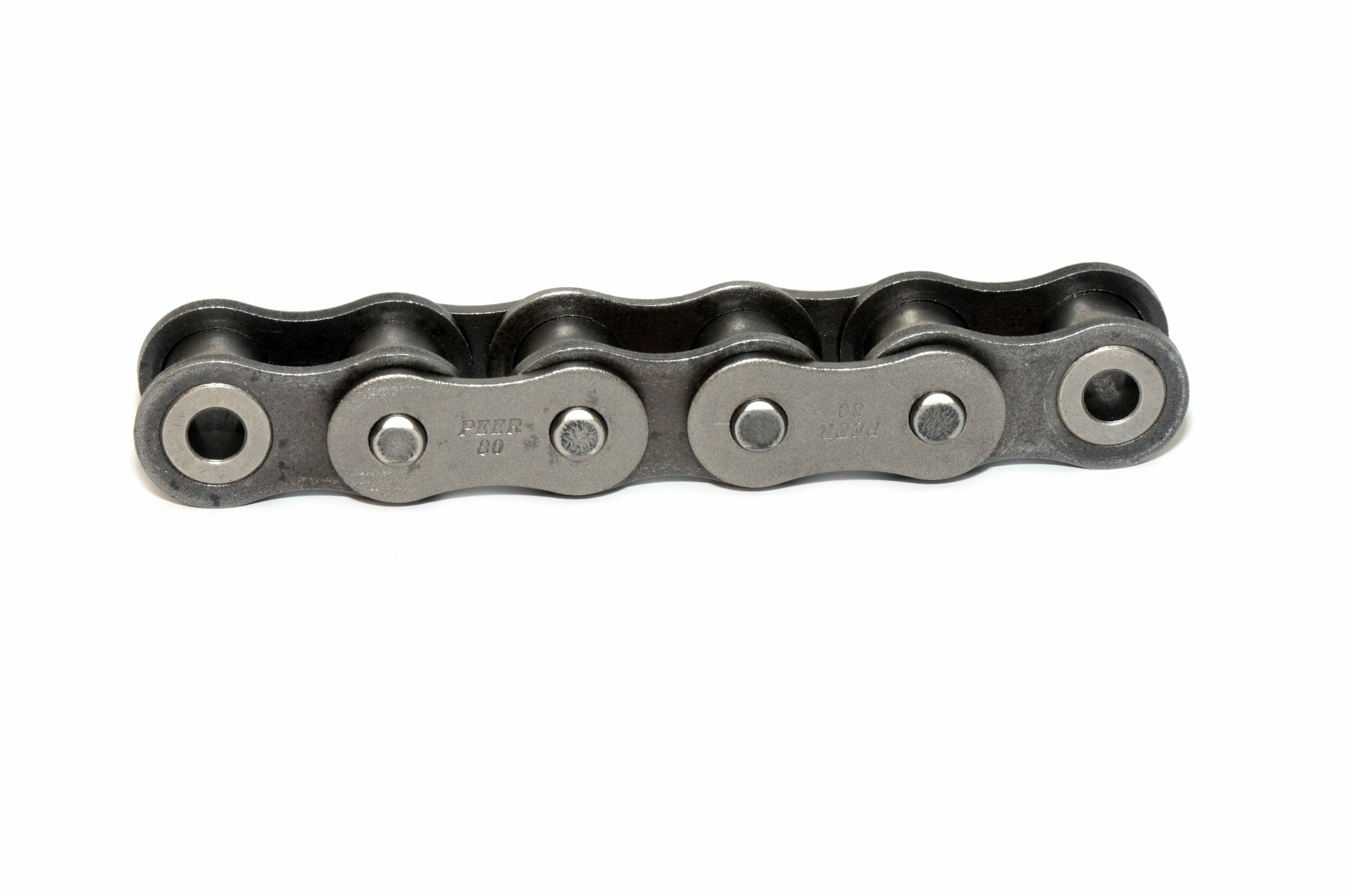

Self Lube Roller Chain – SL Series

– Oil impregnated sintered bushings.

– Ideal for applications where it is difficult to access or maintain chain.

– Optional PEER Zinc or Nickel plating prior to chain assembly provides corrosion resistance enhancing chain life and performance.

– Optional PEER ProCoat, which performs stronger, more impact-resistant than Stainless Steel, offers the durability and load-bearing features of Carbon Steel.

Add To Favorite Products List

SKU: 5543 Categories: Roller Chain, Self-Lubricating Chain, SL Series

Part No.	40 SL	C2040 SL	50 SL	C2050 SL	60 SL	C2060 SL	80 SL	C2080 SL
PEER Part No.	40 SL	C2040 SL	50 SL	C2050 SL	60 SL	C2060 SL	80 SL	C2080 SL
Industry No.	1049	1050	1051	1052	1053	1054	1055	1056

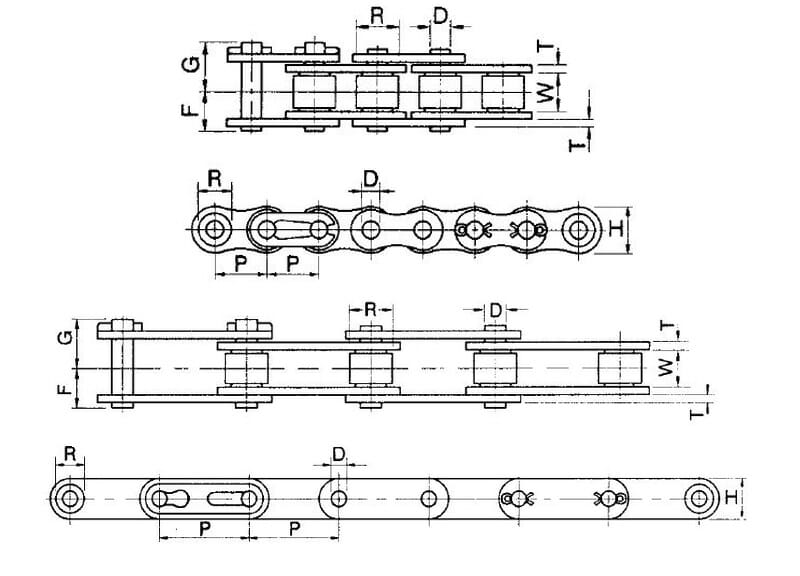

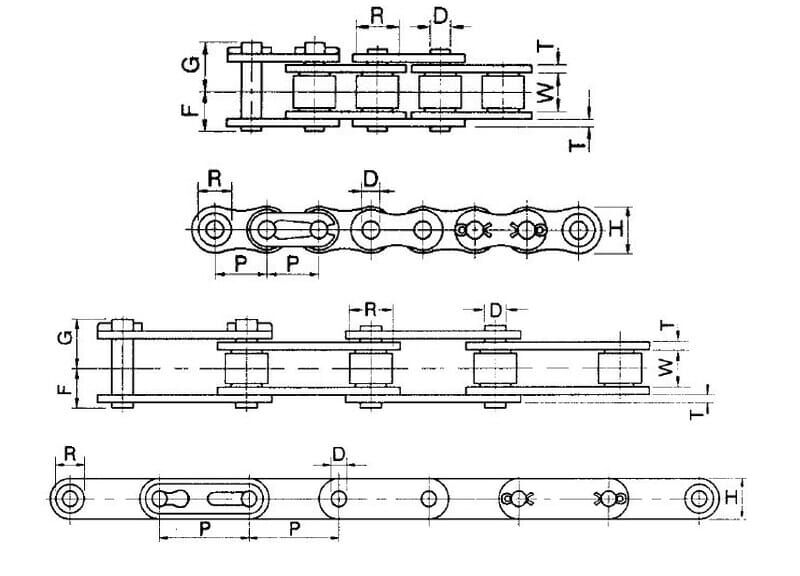

Pitch (P)	0.5	1	0.625	1.25	0.75	1.5	1	2
Pin Diameter (D)	0.156	0.156	0.2	0.2	0.234	0.234	0.312	0.312
Plate Height (H)	0.463	0.463	0.579	0.579	0.673	0.673	0.935	0.935
Plate Thickness (T)	0.059	0.059	0.077	0.077	0.094	0.094	0.125	0.125
Overall Width (G)	0.375	0.375	0.45	0.45	0.549	0.549	0.75	0.75
Unit of Measure (Inches or Millimeters)	in	in	in	in	in	in	in	in
Average Tensile Strength (Lbs.)	2700	2700	4600	4600	5900	5900	11450	11450
Average Weight Per Foot (Lbs./Ft.)	0.42	0.4	0.71	0.67	0.97	0.93	1.71	1.6
SELECT FOR QUOTE
