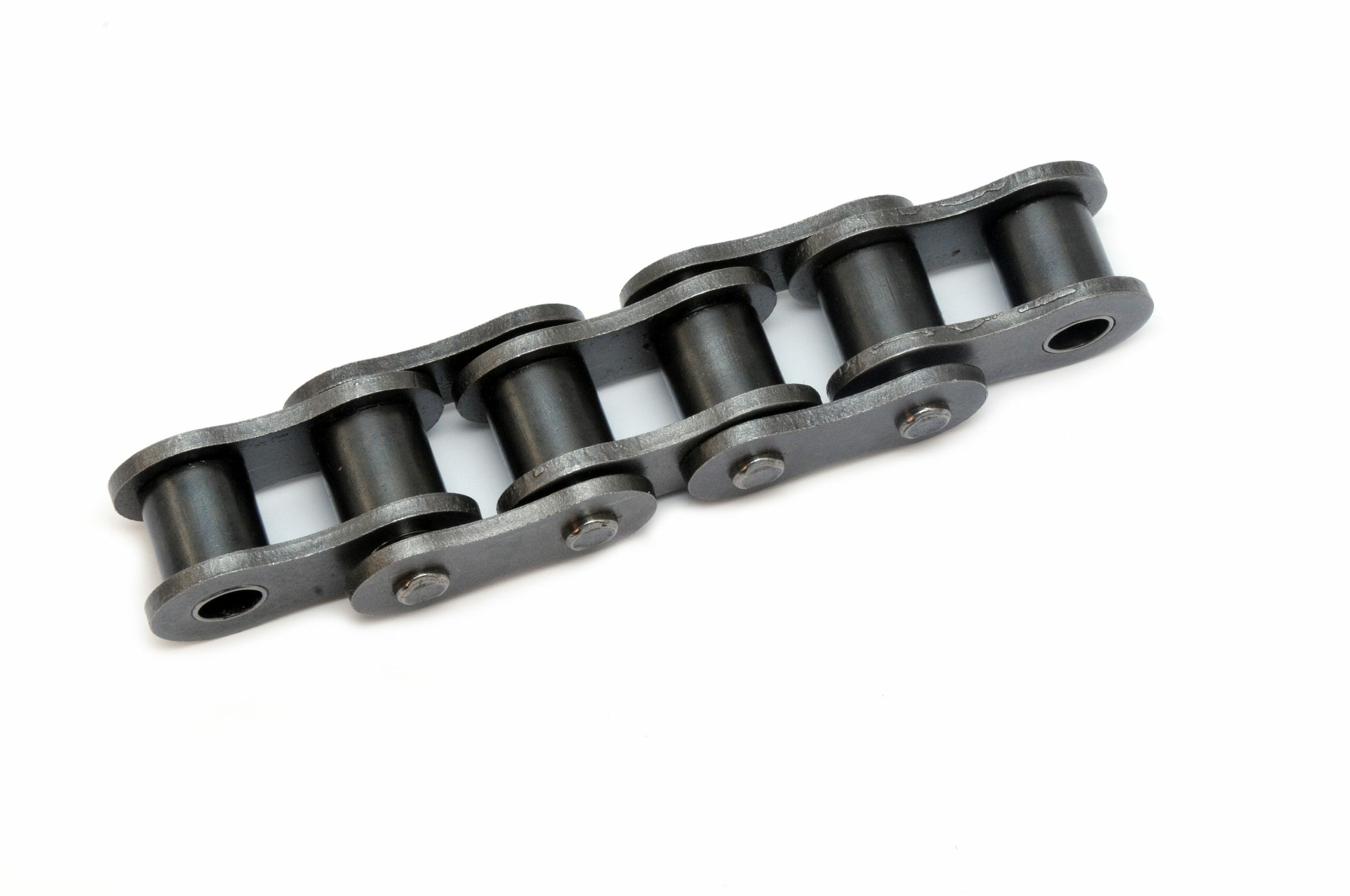

Sidebow Chain

– Increased clearance between pins, bushings, and sideplates to allow extra sidebow.
– Provides greater flexibility on curved tracks.
Add To Favorite Products List Add To Favorite Products List
Add To Favorite Products List
Print Friendly, PDF & Email

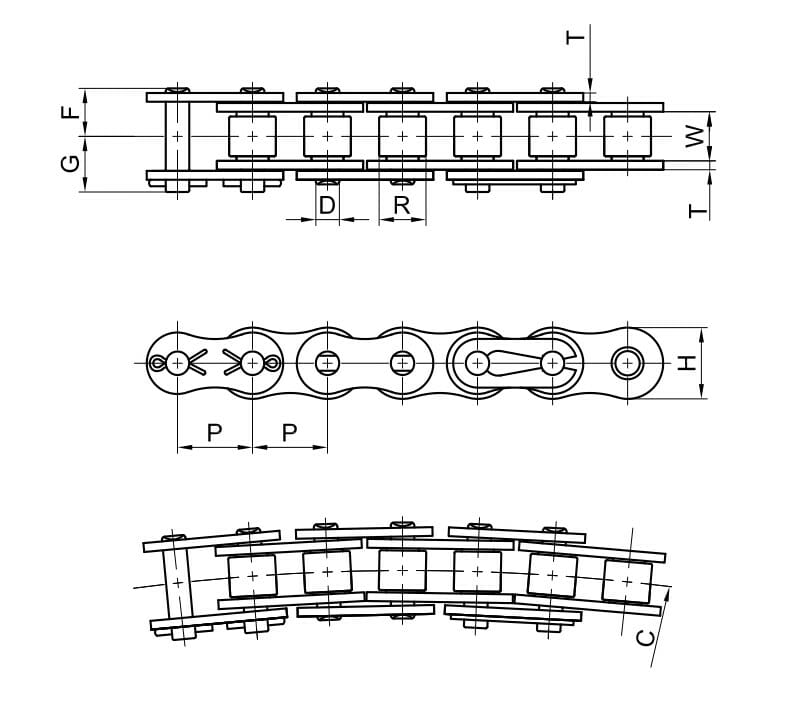

Part No.40 SB50 SB60 SB80 SB
Industry No.40SB50SB60SB80SB
Pitch (P)0.50.6250.751
Pin Diameter (D)0.1560.20.2340.312
Roller Width (W)0.3120.3750.50.625
Roller Diameter (R)0.3120.40.4690.625
Plate Height (H)0.4690.5830.6930.906
Plate Thickness (T)0.060.080.0940.125
Overall Width (F)0.3270.4090.5170.656
Overall Width (G)0.3790.4860.5920.785
Unit of Measure (Inches or Millimeters)inininin
Min Radiusof Sidebow14162024
Average Tensile Strength (Lbs.)3,9006,5008,90014,500
Average Weight Per Foot (Lbs./Ft.)0.420.710.971.7
