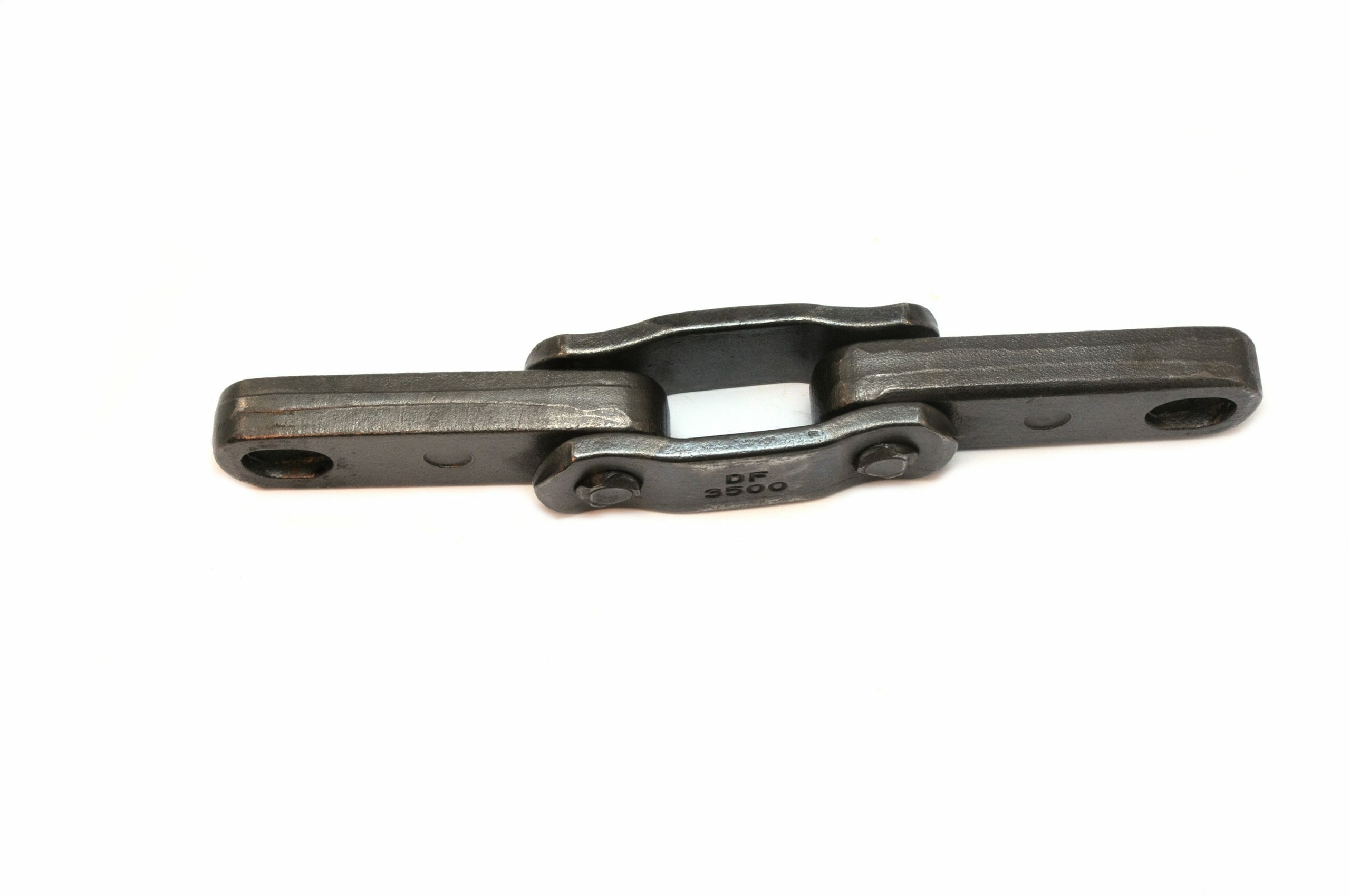

Case Conveyor Chain

– Used in a variety of applications.
– All chain components are heat treated to achieve greater durability and extended chain life.
– Designed for greater flexibility in horizontal and vertical movements.
Add To Favorite Products List Add To Favorite Products List
Add To Favorite Products List

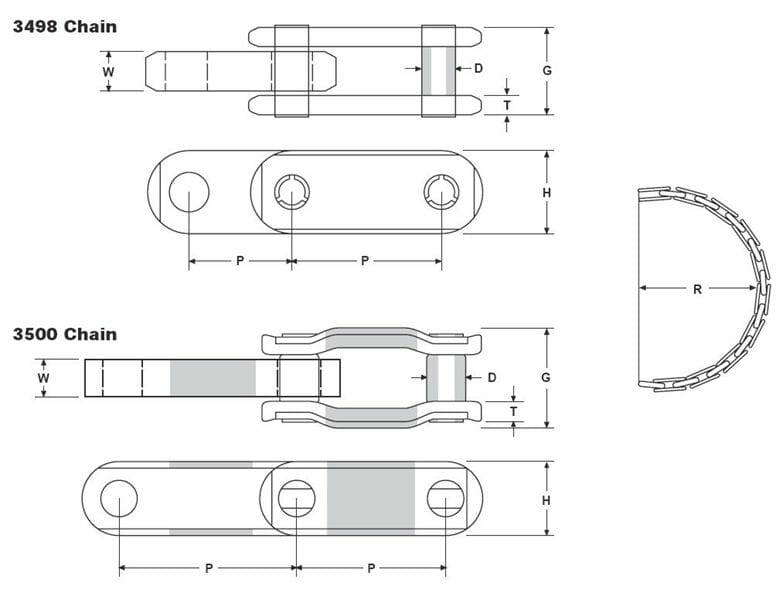

Part No.34983500
PEER Part No.3500
Industry No.34982.500
Lacing3.000
Pitch Inner Link (P)1.750
Pitch Outer Link (P)2.5000.561
Pin Diameter (D)0.625
Block Link Inside Width Sprocket Contact (R)1.250
Roller Diam. (D)1.500
Roller Diam. (R)20
Roller Diam. (W)0.624
Width Inside (E)0.250
Plate Height (H)1.400
Overall Length Over Rivit Lengthin
Chain Width Overall (G)1.480
Min Flex Radius (R)20
Chain Width Inside Link (W)0.64048000
Plate Thickness (T2)3.290
Plate Thickness (T)0.310
Unit of Measure (Inches or Millimeters)in
Avg.Tensile Strength (R)50000
Weight Per Foot Lbs.3.900
