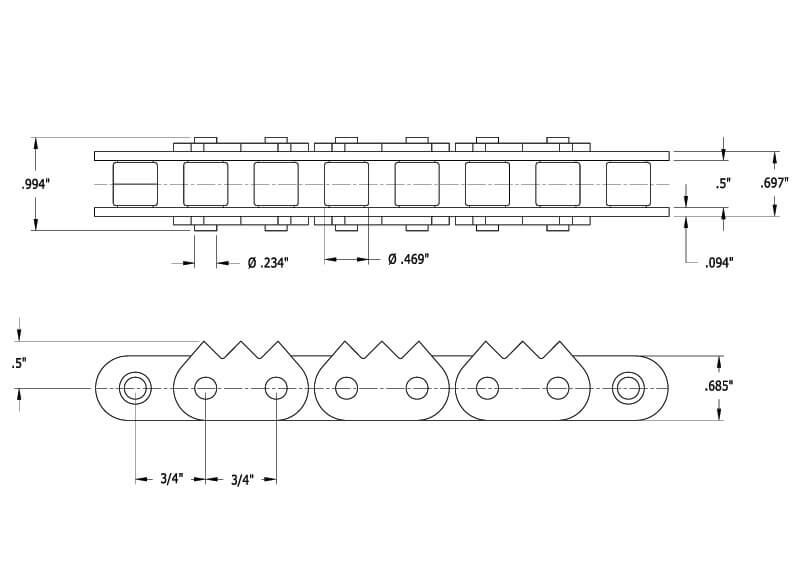

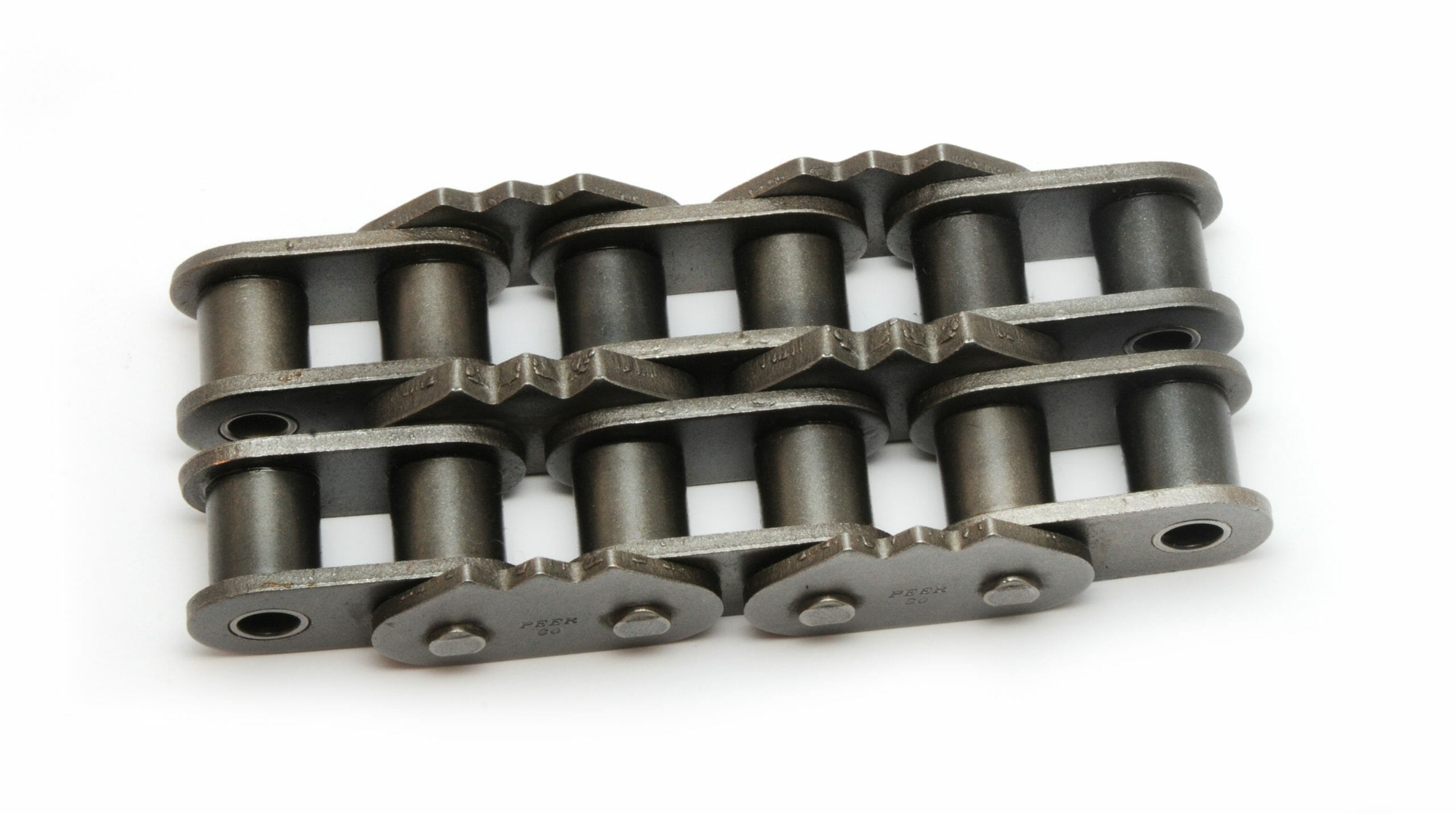

Sharp Top Roller Chain

Add To Favorite Products List Add To Favorite Products List
Add To Favorite Products List
Print Friendly, PDF & Email
PEER Part No. 60-2R Q STP 3P
E2LP
60-3R Q STP 3P
E2LP
60R Q STP 3P
E2LP
80-2R Q STP 3P
E2LP
80-2R Q STP SL
E2LP
80-3R Q STP 3P
E2LP
80-4R Q STP 3P
E2LP
80-4R Q STP SL
E2LP
80R Q STP 3P
E2LP
80R Q STP 3P EL 80R Q STP SL
E2LP
100-2R Q STP 3P
E2LP
100-2R Q STP SL
E2LP
100R Q STP 3P
E2LP
100R Q STP SL
E2LP
Pitch0.750.750.751.001.001.001.001.001.001.001.001.251.251.251.25
Roller Diameter0.4690.4690.4690.6250.6250.6250.6250.6250.6250.6250.6250.7500.7500.7500.750
Width Inner Plates0.5000.5000.5000.6250.6250.6250.6250.6250.6250.6250.6250.7500.7500.7500.750
Pin Diameter0.2340.2340.2340.3120.3120.3120.3120.3120.3120.3120.3120.3750.3750.3750.375
Pin Length1.9502.8601.0502.5402.5403.6902.8302.8301.4001.4001.4003.0703.0701.7001.700
Transverse Pitch0.8970.897N/A1.1531.1531.1531.1531.153N/AN/A1.1531.4081.408N/AN/A
Unit of Measure (Inches or Millimeters)ininininininininininininininin
Average Tensile Strength (Lbs.)18,00027,0009,00035,00035,00052,50070,00070,00017,50017,50017,50050,60050,60025,30025,300
