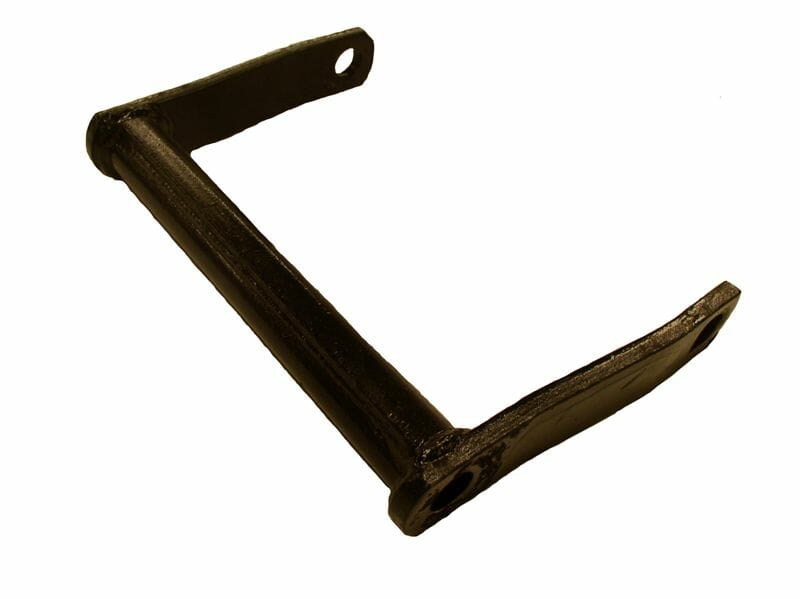

Welded Drag Chain

– Commonly used for forestry applications in rough and abrasive environments.

– WD Series offers heat treated pins while WDH Series offers all components heat treated for greater strength.

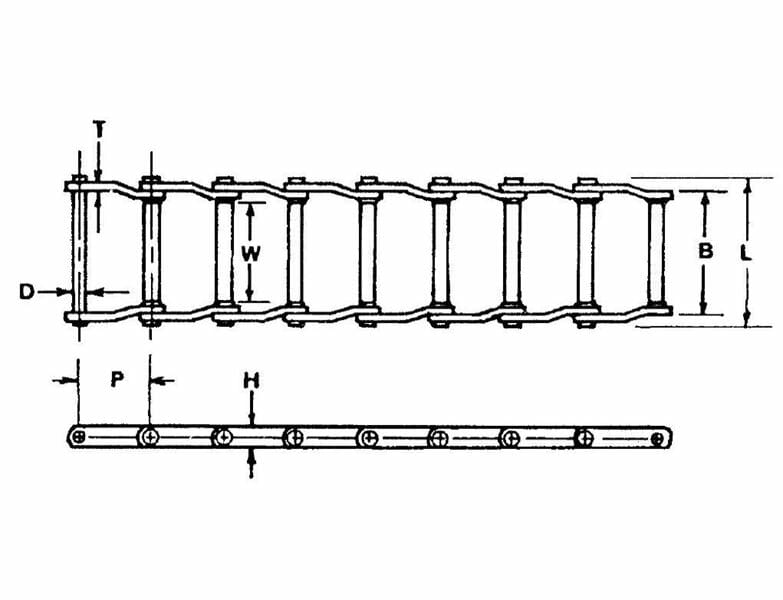

PEER Part No.	WD102	WD104	WD110	WD112	WD116	WD480
Industry No.	WD 102	WD 104	WD 110	WD 112	WD 116	WD 480
Pitch (P)	5.000	6.000	6.000	8.000	8.000	8.000
Bushing Width (W)	6.500	4.125	9.000	9.000	13.000	12.750
Length of Bearing (B)	7.750	5.375	10.375	10.375	14.125	12.750
Plate Height (H)	1.500	1.500	1.500	1.500	1.750	2.000
Plate Thickness (T)	0.375	0.375	0.375	0.375	0.375	0.500
Pin Diam (D)	0.750	0.750	0.750	0.750	0.750	0.875
Overall Length Over Rivit (L)	9.125	6.750	11.750	11.750	15.500	14.625
Average Tensile Strength Pin Heat Treated	38,250	38,250	38,250	38,250	55,000	70,000
Average Tensile Strength All Heat Treated	55,000	55,000	55,000	55,000	59,000	79,000
Average Weight Per Foot (Lbs./Ft.)	10.80	8.50	13.35	11.20	15.70	19.00
