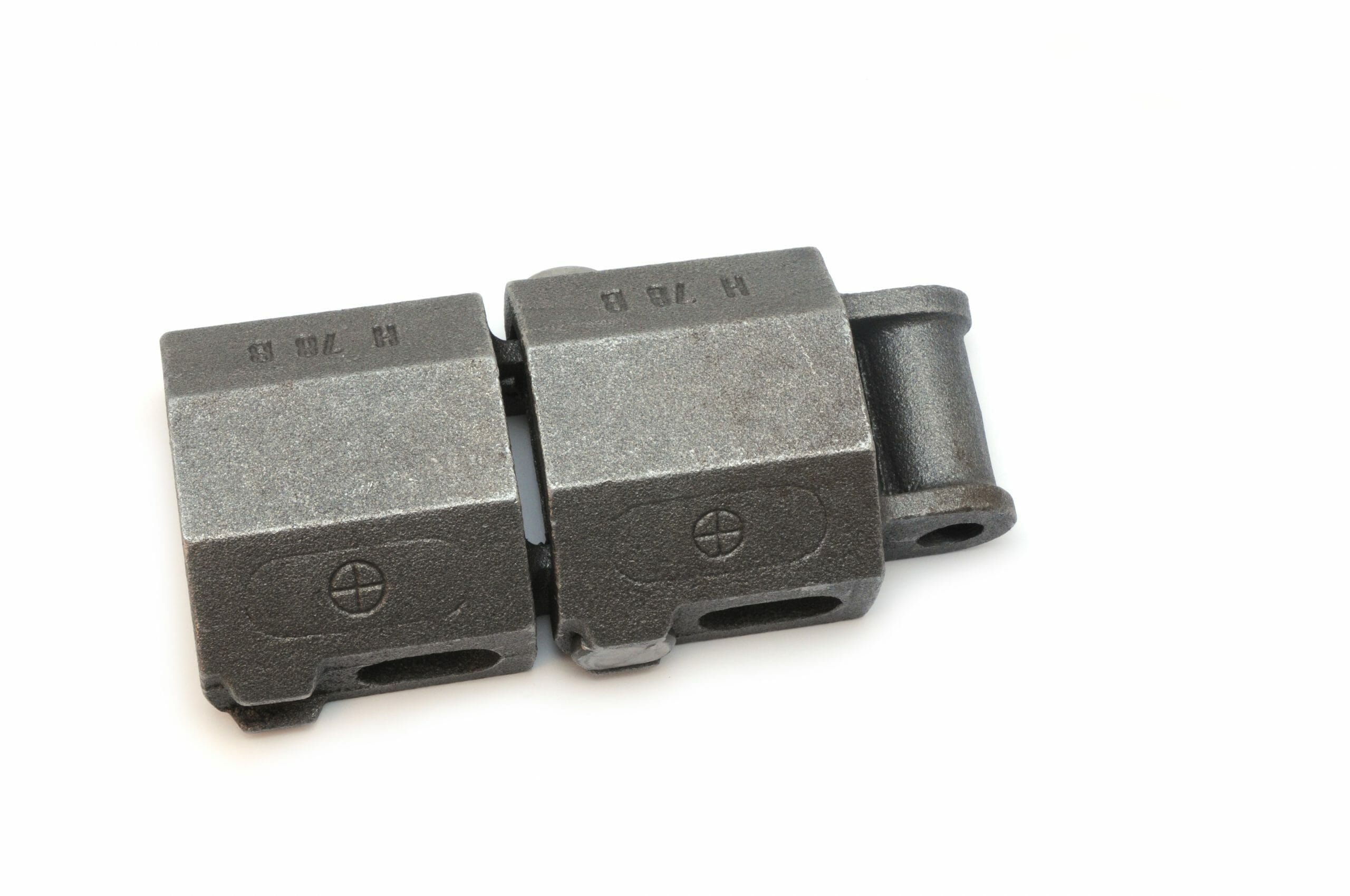

H78Bx2P_1

Rooftop Transfer Chain

SKU: 5374 Categories: Rooftop Transfer Chain, Engineering Class Chain, Conveyor Chains, Lumber-Wood Industry Chains Tags: Forestry, Lumber, Rooftop, Timber

Print Friendly, PDF & Email

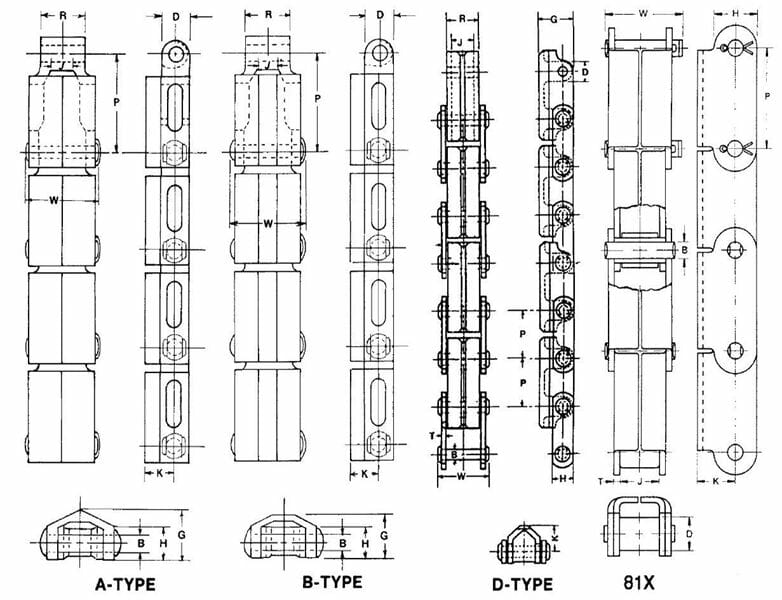

PEER Part No.	81X	C55	H78	H78	H130	H138
Industry No.	81X	C 55	H78	H78	H130	H138
Rooftop Style	-	D	A	B	A	B
Pitch (P)	2.609	1.631	2.609	2.609	4.000	4.000
Overall Width Over Pin Rivited (W)
Diam of Barrel (D)
Overall Width Over Bearing (R)	Call	Call	Call	Call	Call	Call
Diam of Pin (B)	PEER	PEER	PEER	PEER	PEER	PEER
Max Allow Sprocket Face (J)	Chain	Chain	Chain	Chain	Chain	Chain
Height of Side Plate (H)	for	for	for	for	for	for
Center of Pin to Top Of Rooftop (K)	product	product	product	product	product	product
Overall Height (H)	specs.	specs.	specs.	specs.	specs.	specs.
Thickness Of Sidebar (T)
Unit of Measure (Inches or Millimeters)
Average Weight Per Foot Lbs.
