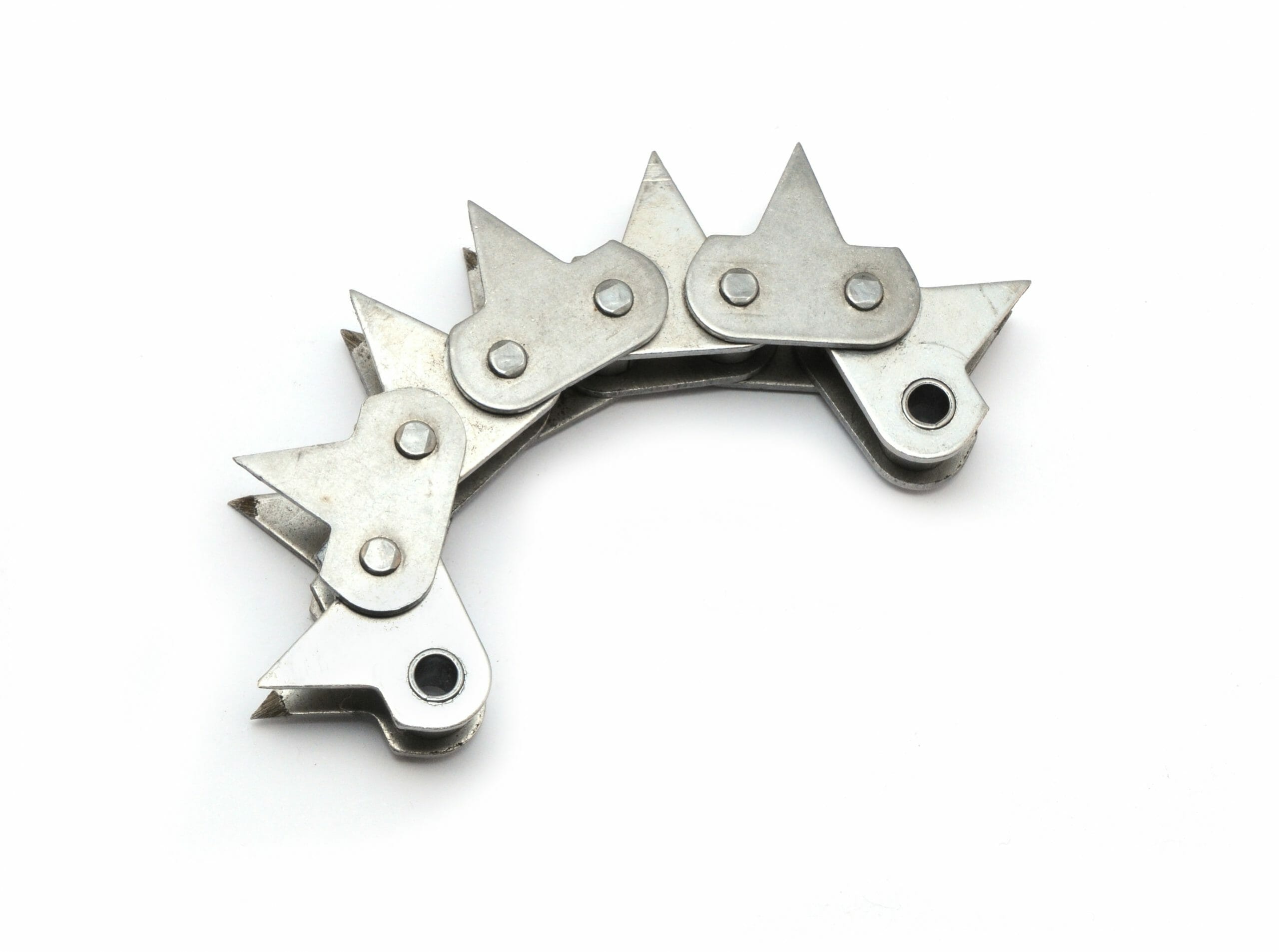

304 Stainless Steel Sticker Chain

– Quest solid bushings provide a smoother, more cylindrical inside surface for greater wear life.

– All chain components are heat treated to achieve greater durability and extended chain life.

– Can be supplied in matched pairs for optimal performance per customer application.

– Solid rollers enhance rotation on the bushings while reducing impact loads on the sprocket tooth.

Part No.	40RSS Sticker
Industry No.	40SS Sticker
Pitch (P)	0.500
Pin Diameter (D)	0.156
Roller Width (W)	0.312
Roller Diameter (R)	0.312
Plate Height (H)	0.060
Plate Height (H1)	0.433
Plate Overall Height (H2)	0.890
Overall Width (F)	0.323
Overall Width (G)	0.362
Unit of Measure (Inches or Millimeters)	in
Average Tensile Strength (Lbs.)	2,750
Average Weight Per Foot (Lbs./Ft.)	0.440
