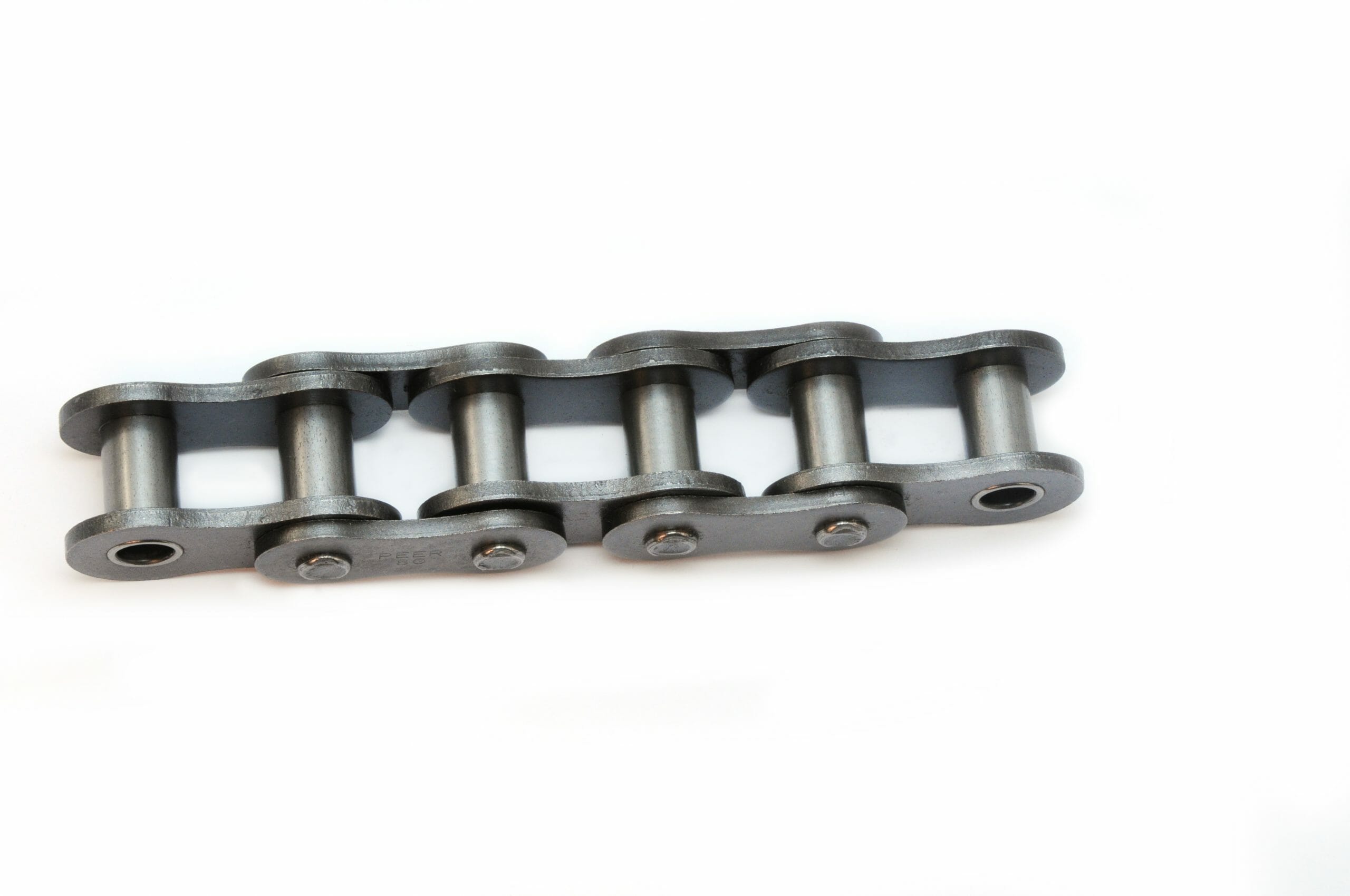

Rollerless Chain

– All chain components are heat treated to achieve maximum strength
and greater wear resistance.

– All PEER roller chain is pre-loaded during the manufacturing process
to minimize initial elongation.

– Hot dipped lubrication ensures 100% lubrication of all chain
components to extend wear life and reduce maintenance costs.

Part No.	55R	65R	85R	105R
Industry No.	55R	65R	85R	105R

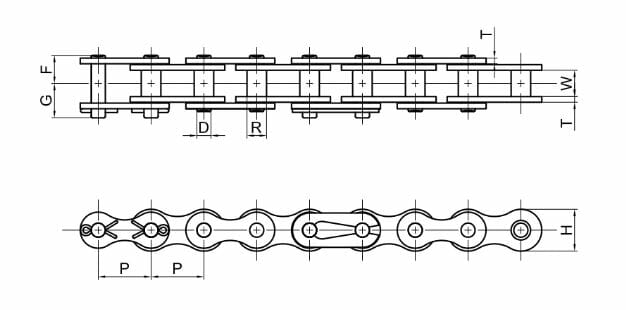

Pitch (P)	0.625	0.750	1.000	1.250
Pin Diameter (D)	0.200	0.234	0.312	0.375
Bushing Width (W)	0.375	0.500	0.625	0.750
Bushing Diameter (R)	0.272	0.330	0.447	0.532
Plate Height (H)	0.579	0.673	0.935	1.165
Plate Thickness (T)	0.080	0.094	0.125	0.156
Overall Width (F)	0.401	0.500	0.636	0.794
Overall Width (G)	0.450	0.549	0.750	0.910
Unit of Measure (Inches or Millimeters)	in	in	in	in
Average Tensile Strength (Lbs.)	6,100	8,500	14,500	24,000
Average Weight Per Foot (Lbs./Ft.)	0.570	0.780	1.450	2.030
