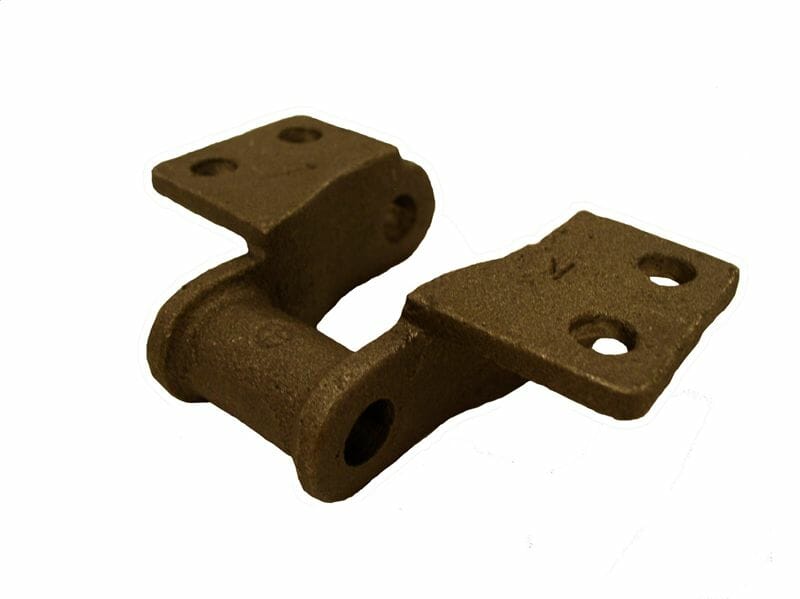

Cast 400 Class Pintle Chain – K-2 Attachment

– Available with Riveted or Cottered construction.
– High strength with minimal weight.
– Closed bearing construction.
Add To Favorite Products List Add To Favorite Products List
Add To Favorite Products List

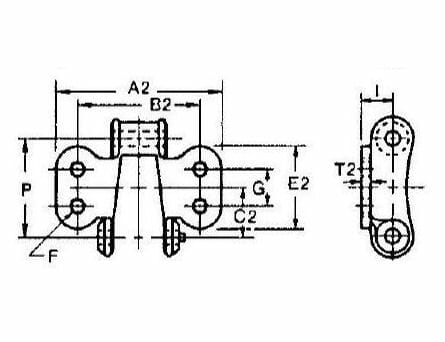

Part No.445 K-1452 K-1455 K-1462 K-1477 K-1477 K-2488 K-1488 K-24103 K-14103 K-2
Industry No.419422426429433435436440444450
Pitch (P)1.631.5061.631.6342.3082.3082.6092.6093.0753.075
Unit of Measure (Inches or Millimeters)inininininininininin
A12.812.752.8753.253.94-4.75-5.44-
A2-----4-4.5-5.25
B12.062.0622.3753-3.81-4.188-
B2-----3-3.62-4.12
C10.720.750.810.811.16-1.31-1.5-
C2-----1.16-1.28-1.53
E10.940.720.810.941.375-1.375-1.72-
E20.940.720.810.941.375-1.375-1.72-
F0.250.250.3150.3150.3150.3150.3740.3740.4330.56
G-----0.81-1.25-1.5
I0.440.440.440.50.660.660.660.660.8120.84
T10.120.1560.1560.1560.156-0.188-0.22-
T2-----0.012-0.188-0.31
