304 Series Stainless Steel A-Type Double Pitch Roller Chain

– Anti-corrosive chain providing excellent corrosion resistance.

– Ideal for applications where strength and corrosion resistance are both required.

– Used in applications with higher working loads.

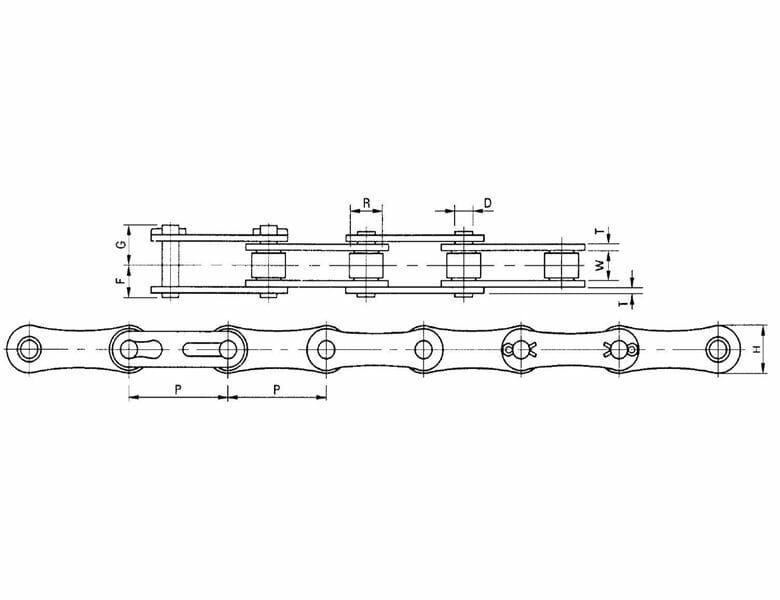

Part No.	A2040RSS	A2050RSS	A2060RSS
Industry No.	A2040SS	A2050SS	A2060SS
Pitch (P)	1.000	1.250	1.500
Pin Diameter (D)	0.156	0.200	0.234
Roller Width (W)	0.312	0.375	0.500
Roller Diameter (R)	0.312	0.400	0.469
Plate Height (H)	0.463	0.593	0.683
Plate Thickness (T)	0.060	0.080	0.094
Overall Width (F)	0.320	0.401	0.500
Overall Width (G)	0.375	0.450	0.549
Average Weight Per Foot (Lbs./Ft.)	0.300	0.500	0.700
