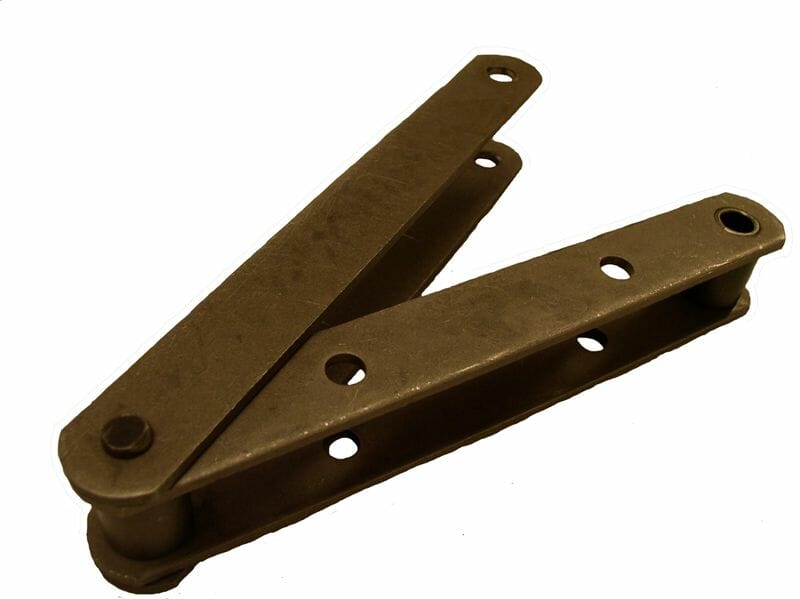

81X Conveyor Chain – G-2 Attachment

– All PEER’s 81X, 81XH, and 81XH/H chains consist of quad staked pins and solid bushings to provide longer wear life and handle heavy loads.

– All chain components are heat treated to achieve greater durability and extended chain life.

– Used in heavy duty operations and conveying applications in severe environments.

Part No.	81X 8P G-2 E2LR-A	81X 8P G-2 E2LR-B	81X 8P G-2 EL-A	81X 8P G-2 EL-B
Industry No.	81X 8P G-2 E2LR-A	81X 8P G-2 E2LR-B	81X 8P G-2 EL-A	81X 8P G-2 EL-B
Pitch (P)	8.000	8.000	8.000	8.000
Pin Diameter (D)	0.437	0.437	0.437	0.437
Bushing Width (W)	1.060	1.060	1.060	1.060
Roller Diameter (R)	0.905	0.905	0.905	0.905
Plate Height (H)	1.120	1.120	1.120	1.120
Plate Thickness (T)	0.156	0.156	0.156	0.156
Hole Diam (A)	0.410	0.281	0.281	0.281
Hole Spacing (B)	3.625	1.500	4.000	1.500
Overall Width (F)	0.940	0.940	0.940	0.940
Overall Width (G)	1.125	1.125	1.125	1.125
Unit of Measure (Inches or Millimeters)	in	in	in	in
Average Tensile Strength (Lbs.)	27500	27500	27500	27500
Average Weight Per Foot (Lbs./Ft.)	1.60	1.60	1.60	1.60
