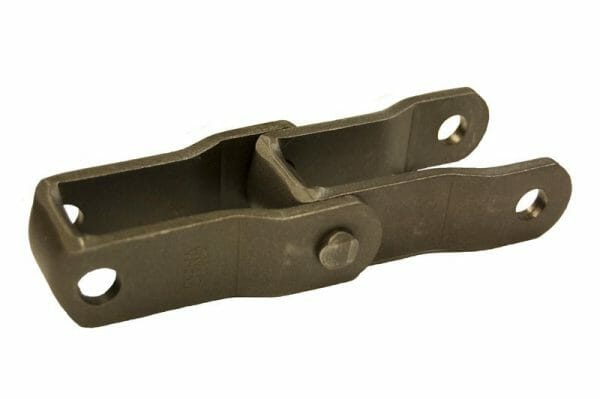

667X – Pintle Chain – Made of Steel

Part No.	667X
Industry No.	1042

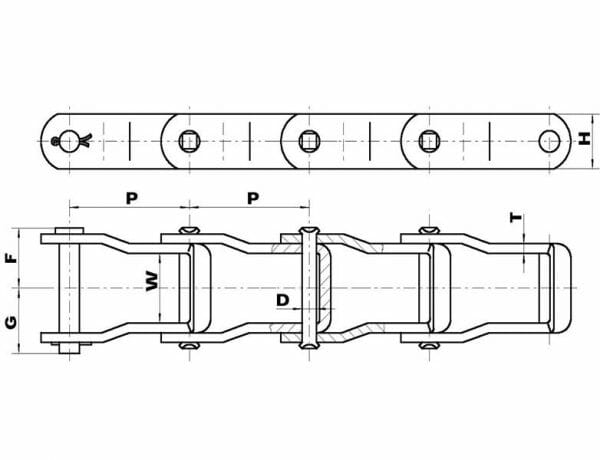

Pitch (P)	2.25
Pin Diameter (D)	0.437
Plate Height (H)	0.937
Plate Thickness (T)	0.17
Overall Width (G)	1.15
Unit of Measure (Inches or Millimeters)	in
Average Tensile Strength (Lbs.)	22030
Average Weight Per Foot (Lbs./Ft.)	1.9

After adding products to your quote inquiry, you'll complete a simple form and be able to request a quote for the products specified

SKU: 14335 Categories: Agricultural Machinery Chains, Engineering Class Chain
