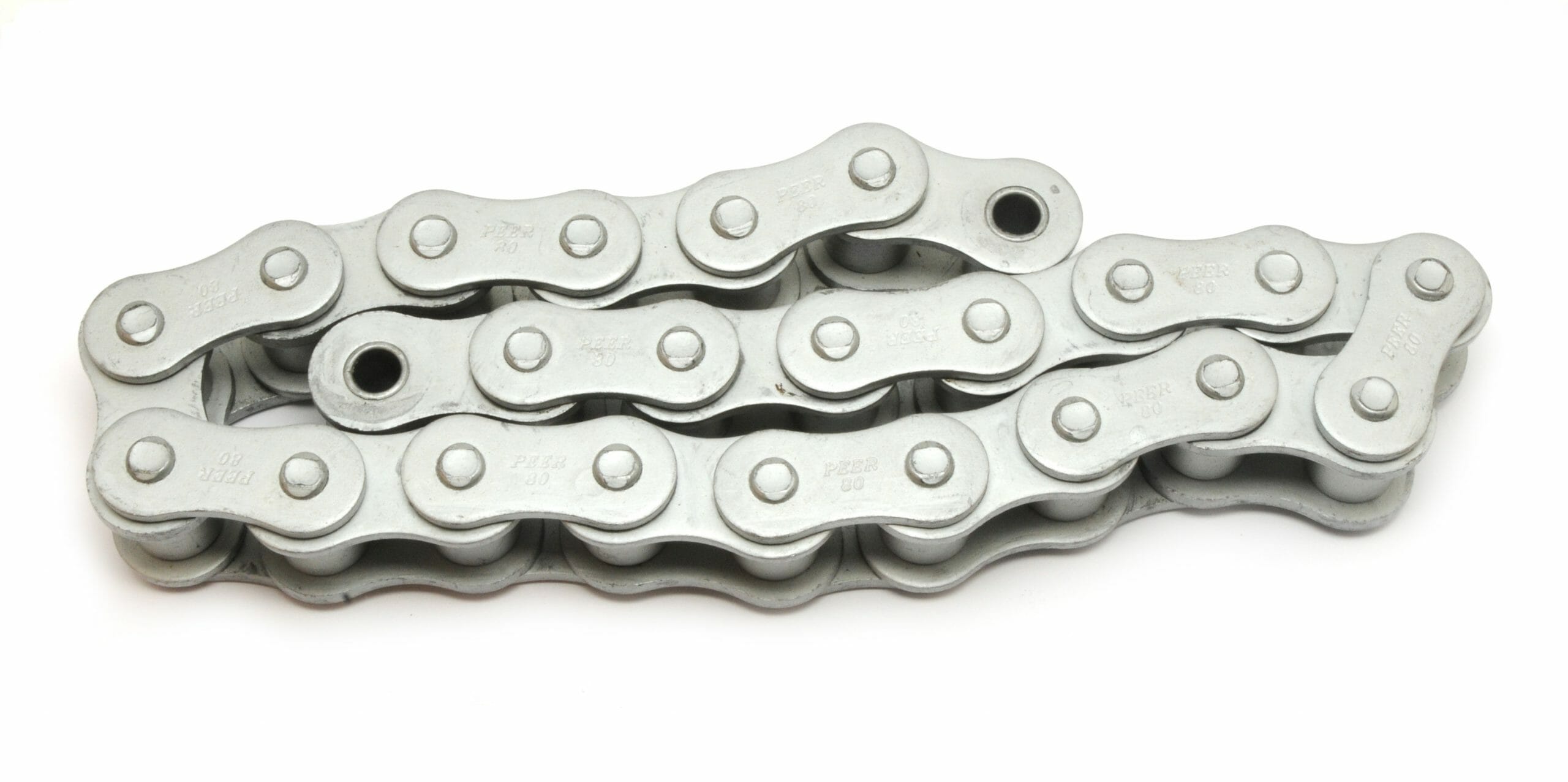

ProCoat® Roller Chain
ProCoat® Roller Chain - Image 2

ProCoat® Roller Chain

– Provides excellent corrosion resistance and commonly used in applications with high humidity, outdoor environments, saltwater applications.
– Stronger, more impact-resistant than Stainless Steel.
– ProCoat offers the durability and load-bearing features of Carbon Steel.
– All PEER roller chain incorporates solid rollers enhancing rotation on the bushing while reducing impact loads on the sprocket tooth during operation.
– All PEER roller chain is pre-loaded during the manufacturing process to minimize initial elongation.
Add To Favorite Products List Add To Favorite Products List
Add To Favorite Products List
Part No.50RPRO410RPRO41RPRO35RPRO40RPRO60RPRO80RPRO100RPRO
Industry No.969968967964965970971972
Pitch (P)0.6250.50.50.3750.50.7511.25
Pin Diameter (D)0.20.1420.1410.1410.1560.2340.3120.375
Bushing Width (W)0.3750.1250.250.1880.3120.50.6250.75
Roller Width (W)0.3750.1250.250.1880.3120.50.6250.75
Roller Diam. (R)0.40.3060.3060.20.3120.4690.6250.75
Roller Diameter (R)0.40.3060.3060.20.3120.4690.6250.75
Plate Height (H)0.5790.390.3860.340.4630.6730.9351.165
Plate Thickness (T)0.080.0390.050.050.060.0940.1250.156
Overall Width (G)0.450.2330.3220.2840.3750.5490.750.91
Unit of Measure (Inches or Millimeters)inininininininin
Average Tensile Strength (Lbs.)6100190020002100370085001450024000
