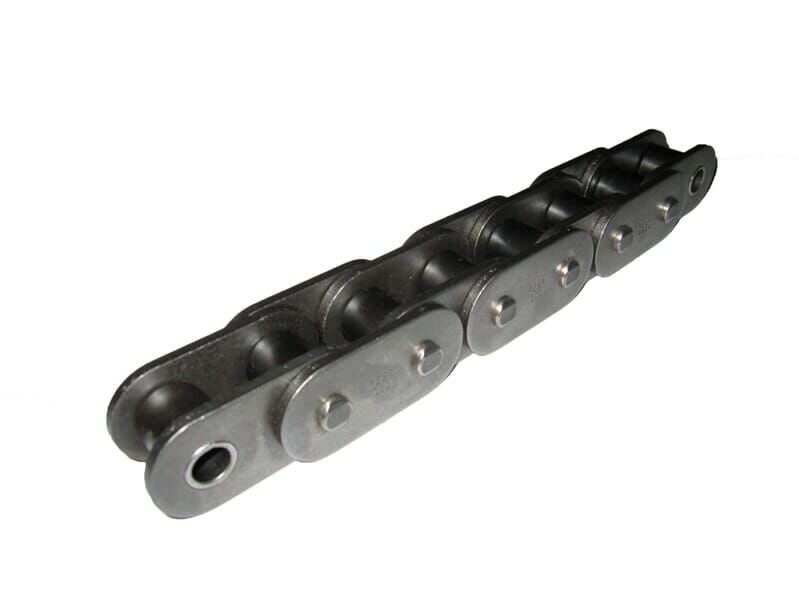

ISO British Standard Straight Sideplate Single Strand Roller Chain

– All PEER roller chains incorporate solid rollers enhancing rotation on the
bushing while reducing impact loads on the sprocket tooth during operation.
– All chain components are heat treated to achieve maximum strength
and greater wear resistance.
– All PEER roller chain is pre-loaded during the manufacturing process
to minimize initial elongation.
– Hot dipped lubrication ensures 100% lubrication of all chain
components to extend wear life and reduce maintenance costs.
Add To Favorite Products List Add To Favorite Products List
Add To Favorite Products List
Part No.C06BRC08BRC10BRC12BRC16BRC20BRC24BRC28BRC32BR
Industry No.582583584585586587588589590

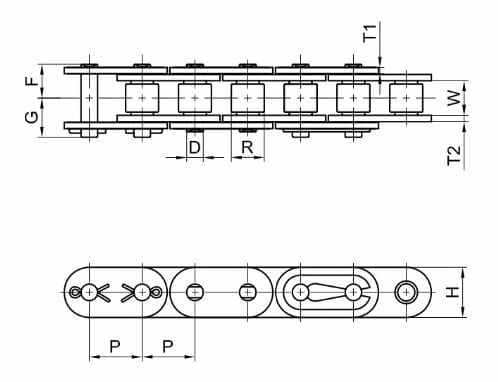

Pitch (P)0.3750.50.6250.7511.251.51.752
Pin Diameter (D)0.1290.1750.20.2250.3260.4010.5760.6260.701
Bushing Width (W)0.2250.3050.380.460.670.7711.221.22
Roller Width (W)0.2250.3050.380.460.670.7711.221.22
Roller Diam. (R)0.250.3350.40.4750.6250.7511.11.15
Roller Diameter (R)0.250.3350.40.4750.6250.7511.11.15
Plate Height (H)0.3250.4630.580.6350.831.0241.2831.461.665
Plate Thickness (T2)0.0490.0620.0670.0730.1570.1760.2360.2870.276
Overall Width (G)0.2830.3680.4550.5260.8310.9611.2671.4741.502
Unit of Measure (Inches or Millimeters)ininininininininin
Plate Thickness (T1)0.0490.0590.0670.0730.1250.1250.1890.2360.236
Average Tensile Strength (Lbs.)23904233599772311710823149396835732063714
SKU: 5609 Categories: , ,
