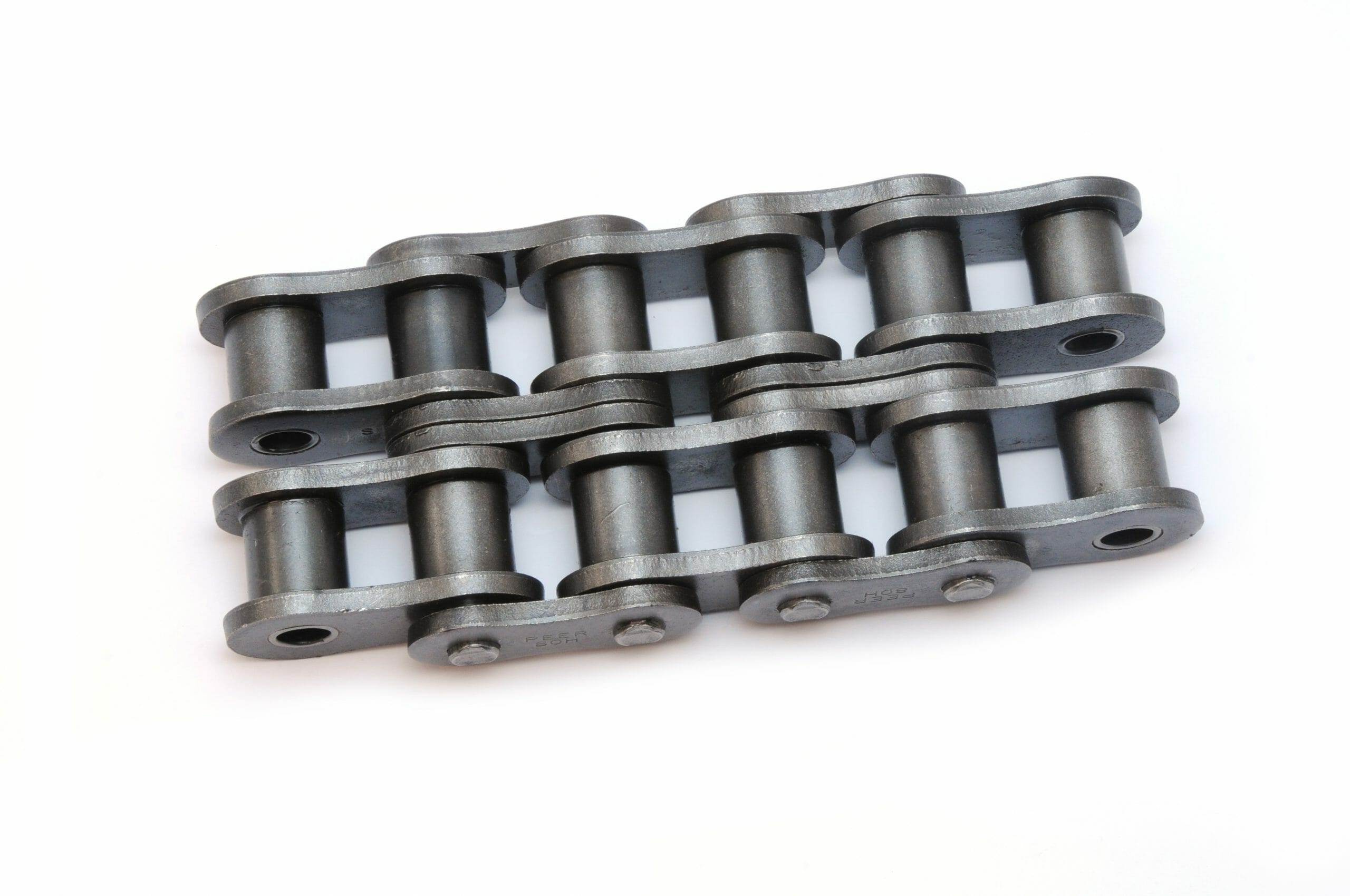

ISO British Standard Double Strand Chain

Chain available in Nickel Plated and Stainless Steel.

– All PEER roller chains incorporate solid rollers enhancing rotation on the
bushing while reducing impact loads on the sprocket tooth during operation.
– All chain components are heat treated to achieve maximum strength
and greater wear resistance.
– All PEER roller chain is pre-loaded during the manufacturing process
to minimize initial elongation.
– Hot dipped lubrication ensures 100% lubrication of all chain
components to extend wear life and reduce maintenance costs.
Add To Favorite Products List Add To Favorite Products List
Add To Favorite Products List
Part No.08B-2R10B-2R12B-2R16B-2R20B-2R24B-2R06B-2R
Industry No.445451457463468473959

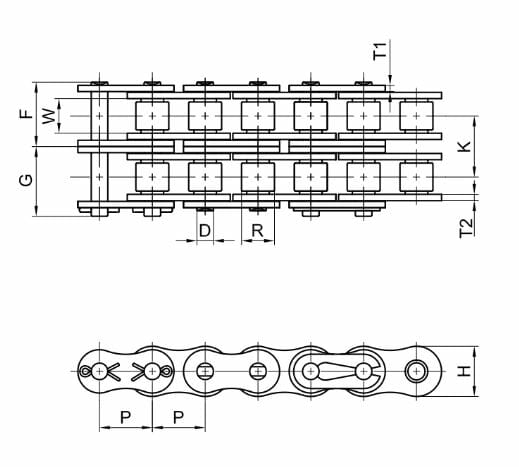

Pitch (P)0.50.6250.7511.251.50.375
Pin Diameter (D)0.1750.20.2250.3260.4010.5760.129
Roller Diam. (R)0.3350.40.4750.6250.7510.25
Roller Diam. (W)0.3050.380.460.670.7710.225
Roller Diameter (R)0.3350.40.4750.6250.7510.25
Plate Height (H)0.4650.580.6350.831.041.3150.325
Plate Thickness (T2)0.0620.0670.0730.1570.1760.2360.05
Overall Width (G)0.6721.110.9021.411.6612.2350.501
Unit of Measure (Inches or Millimeters)ininininininin
Transverse pitch (K)0.5480.6530.7661.2551.4351.9040.403
Plate Thickness (T1)0.0590.0670.0730.1250.1250.1890.039
Average Tensile Strength (Lbs.)793711993144623421646297793364277
Average Weight Per Foot (Lbs./Ft.)0.8741.2161.6133.5414.8119.4080.497
