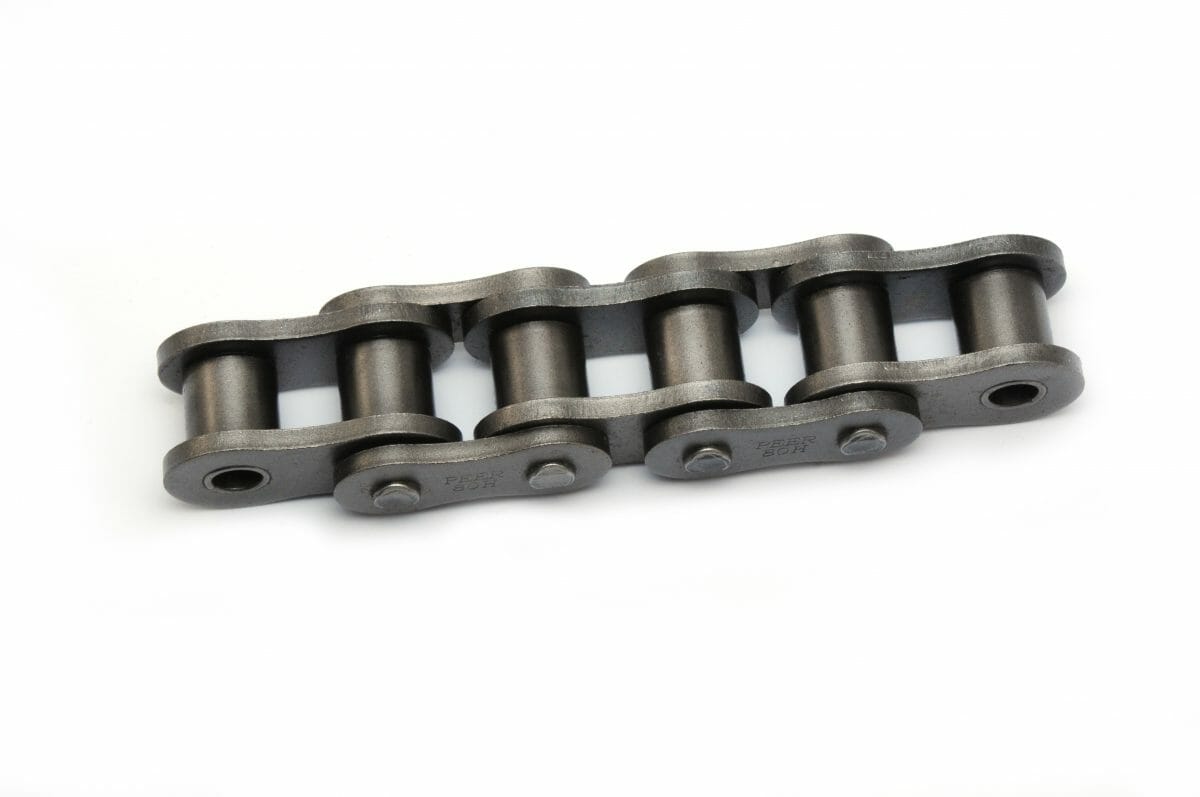

60HR – ANSI Standard Heavy Series Roller Chain

Part No.	60HR
Industry No.	371

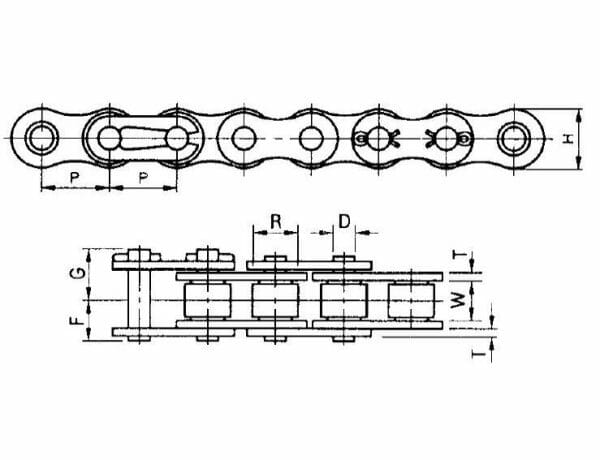

Pitch (P)	0.75
Pin Diamiter (D)	0.235
Bushing Width (W)	0.5
Roller Width (W)	0.5
Roller Diam. (R)	0.469
Roller Diameter (R)	0.469
Plate Height (H)	0.712
Plate Thickness (T)	0.125
Overall Width (G)	0.618
Unit of Measure (Inches or Millimeters)	in
Average Tensile Strength (Lbs.)	11905
Average Weight Per Foot (Lbs./Ft.)	1.163
