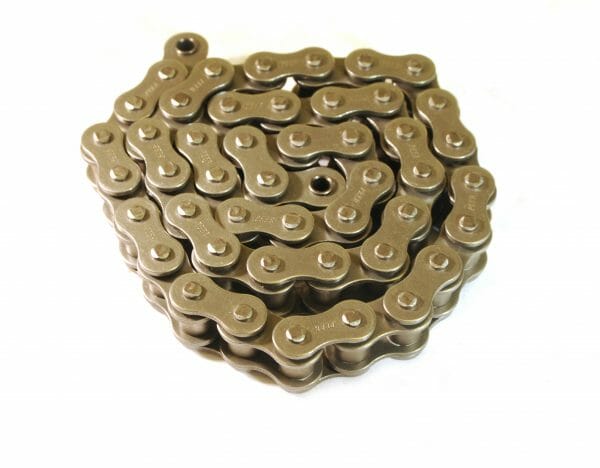

50 O-Ring – O-Ring Roller Chain

Part No.	50 O-Ring
Industry No.	255
Pitch (P)	0.625
Pin Diamiter (D)	0.2
Bushing Width (W)	0.375
Roller Width (W)	0.375
Roller Diam. (R)	0.4
Roller Diameter (R)	0.4
Plate Height (H)	0.594
Plate Thickness (T2)	0.08
Overall Width (G)	0.48
Unit of Measure (Inches or Millimeters)	in
Plate Thickness (T1)	0.08
Average Tensile Strength (Lbs.)	6680
Average Weight Per Foot (Lbs./Ft.)	0.7

After adding products to your quote inquiry, you'll complete a simple form and be able to request a quote for the products specified

SKU: 50 O-Ring Categories: O-Ring Chain, Specialty Chain
