40RMSS 316 Series Stainless Steel Single Strand Roller Chains

– Anti-corrosive chain providing excellent corrosion resistance.
– Ideal for applications where strength and corrosion resistance are both required.
– Used in applications with higher working loads.

VIEW PRODUCT

Add To Favorite Products List Add To Favorite Products List
Add To Favorite Products List
Print Friendly, PDF & Email
Part No. 40RMSS
Industry No. 40SS 316SS

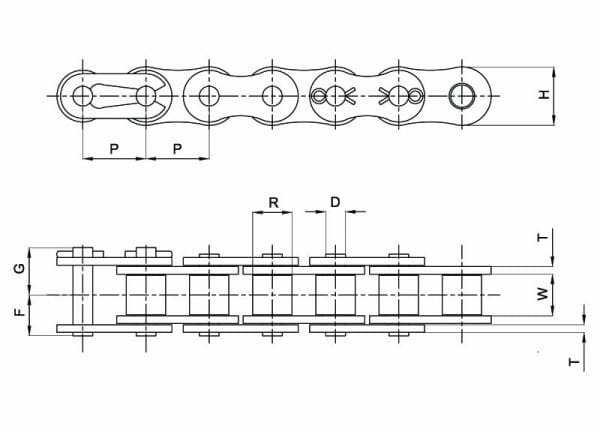

Pitch (P) 0.500
Pin Diameter (D) 0.156
Roller Width (W) 0.312
Roller Diameter (R) 0.312
Plate Height (H) 0.463
Plate Thickness (T) 0.060
Overall Width (F) 0.320
Overall Width (G) 0.375
Unit of Measure (Inches or Millimeters) in
Average Weight Per Foot (Lbs./Ft.) 0.420
Working Load (Lbs.) 98
After adding products to your quote inquiry, you'll complete a simple form and be able to request a quote for the products specified
SKU: 10846 Categories: , ,
