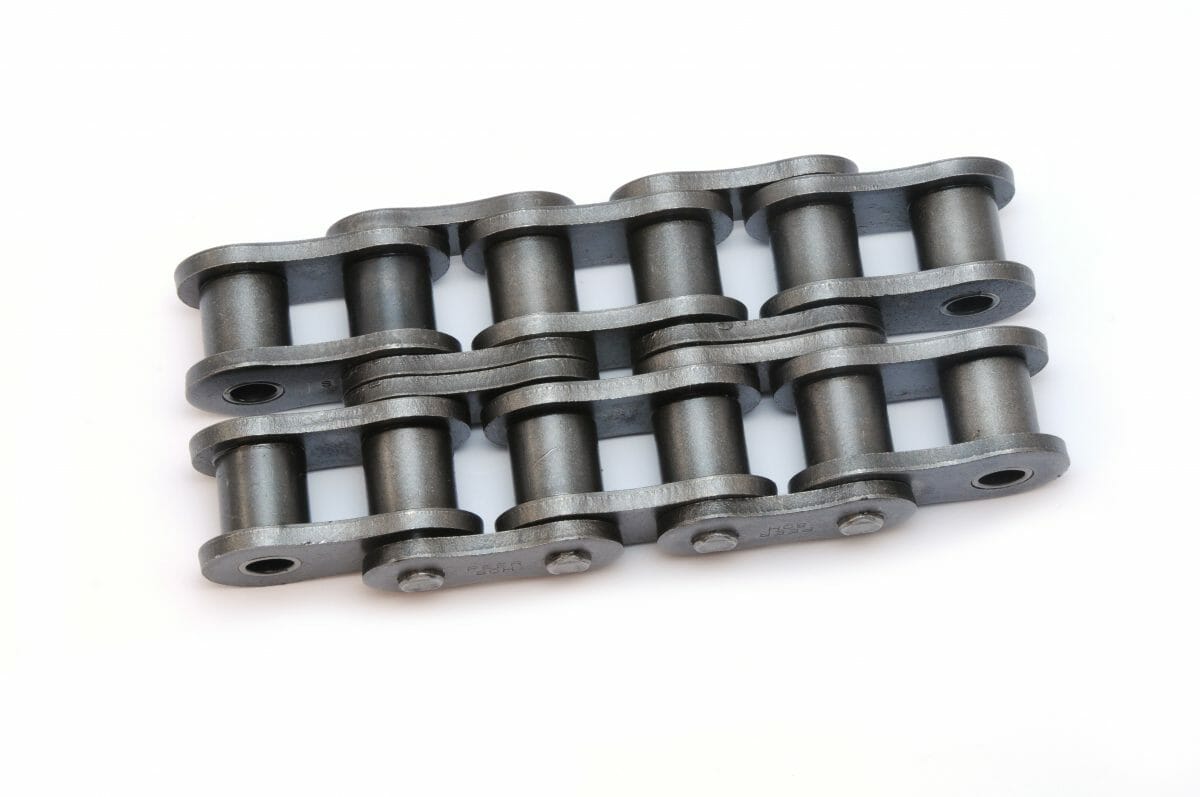

160H-2R – ANSI Standard Heavy Series Double-Strand Roller Chain

Available in these sizes:

Add products to your quote inquiry to request a quote.

Must login with an existing account to access pricing and place an order.

Part No.	160H-2R
Industry No.	425
Pitch (P)	2
Pin Diameter (D)	0.563
Bushing Width (W)	1.25
Roller Width (W)	1.25
Roller Diam. (R)	1.125
Roller Diameter (R)	1.125
Plate Height (H)	1.9
Plate Thickness (T)	0.281
Overall Width (G)	2.764
Unit of Measure (Inches or Millimeters)	in
Transverse pitch (K)	2.437
Average Tensile Strength (Lbs.)	137568
Average Weight Per Foot (Lbs./Ft.)	14.172

After adding products to your quote inquiry, you'll complete a simple form and be able to request a quote for the products specified
