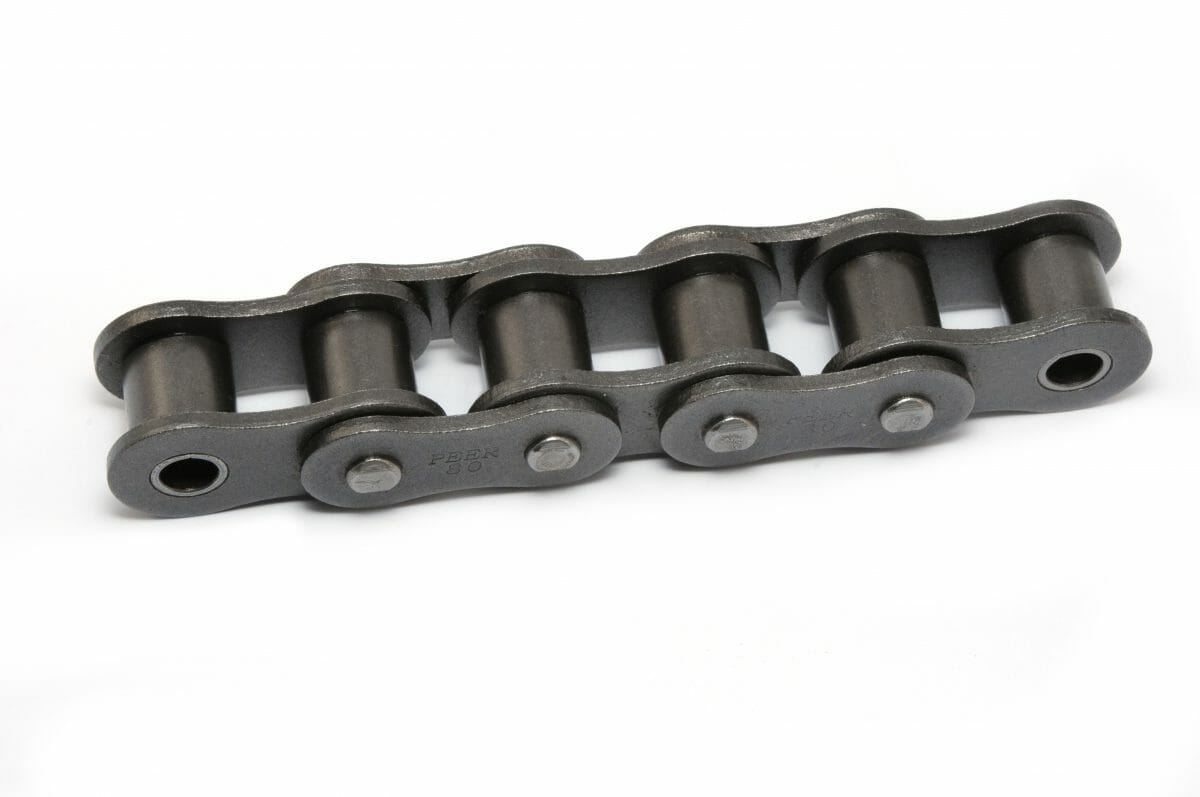

10BR – ISO British Standard Single Strand Chain

Part No.	10BR
Industry No.	530

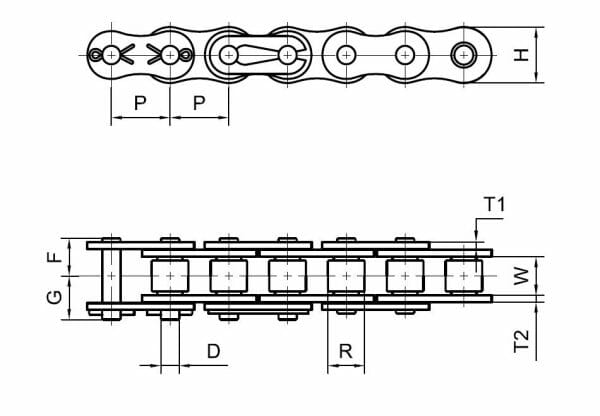

Pitch (P)	0.625
Pin Diamiter (D)	0.2
Bushing Width (W)	0.38
Roller Width (W)	0.38
Roller Diam. (R)	0.4
Roller Diameter (R)	0.4
Plate Height (H)	0.58
Plate Thickness (T2)	0.067
Overall Width (G)	0.455
Unit of Measure (Inches or Millimeters)	in
Plate Thickness (T1)	0.067
Average Tensile Strength (Lbs.)	5997
Average Weight Per Foot (Lbs./Ft.)	0.618
