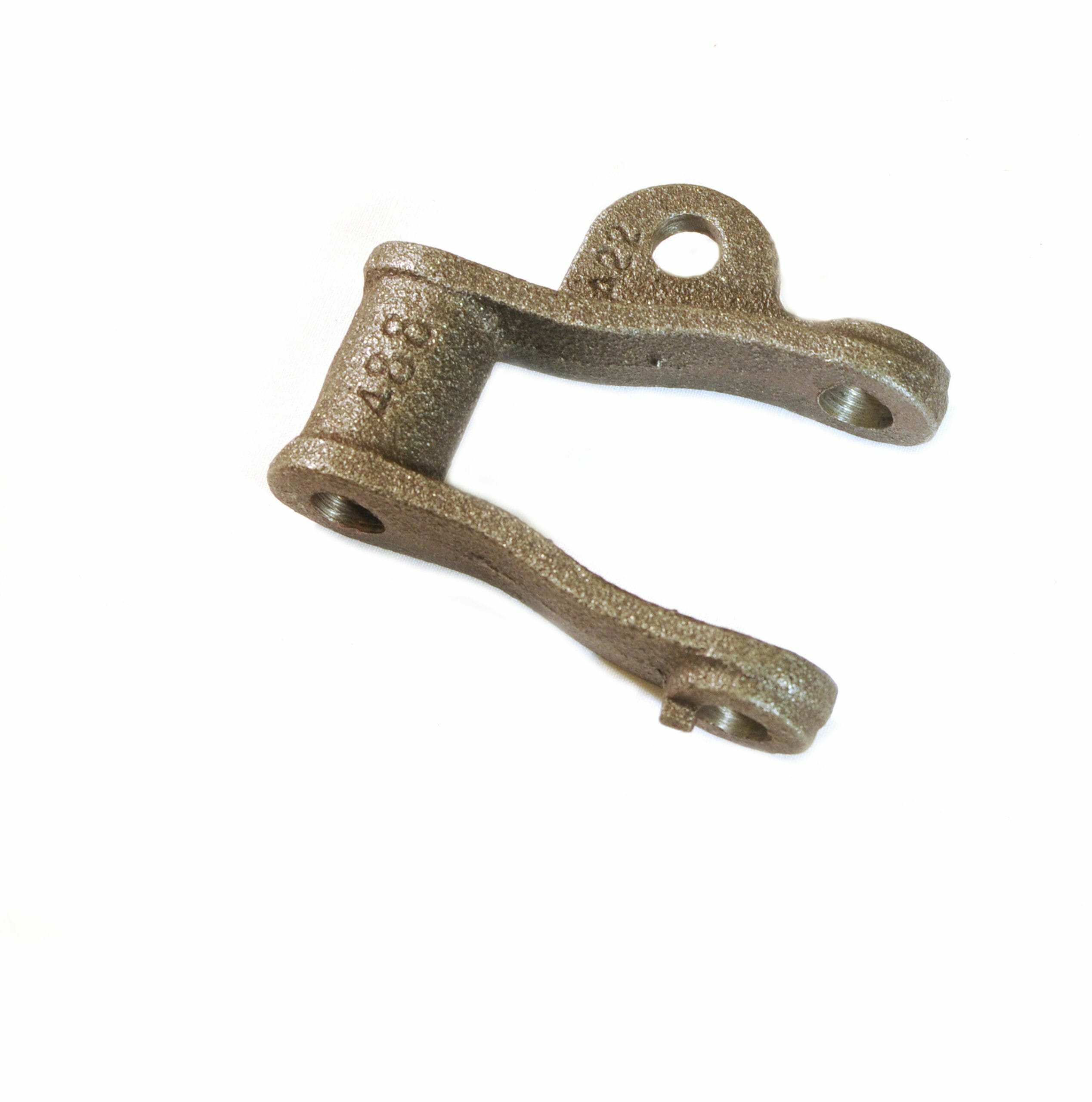

Cast 400 Class Pintle Chain – A-22 Attachment

– Available with Riveted or Cottered construction.

– High strength with minimal weight.

– Closed bearing construction.

Part No.	477 A-22
PEER Part No.	477 A-22
Industry No.	503

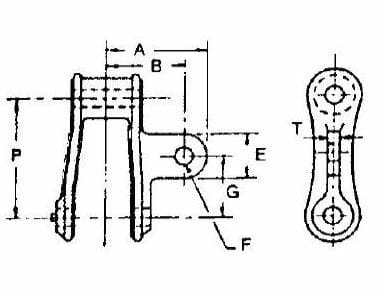

Pitch (P)	2.308
Unit of Measure (Inches or Millimeters)	in
A	1.938
B	1.5
E	0.88
F	0.34
G	1.12
T	0.25
SELECT FOR QUOTE
