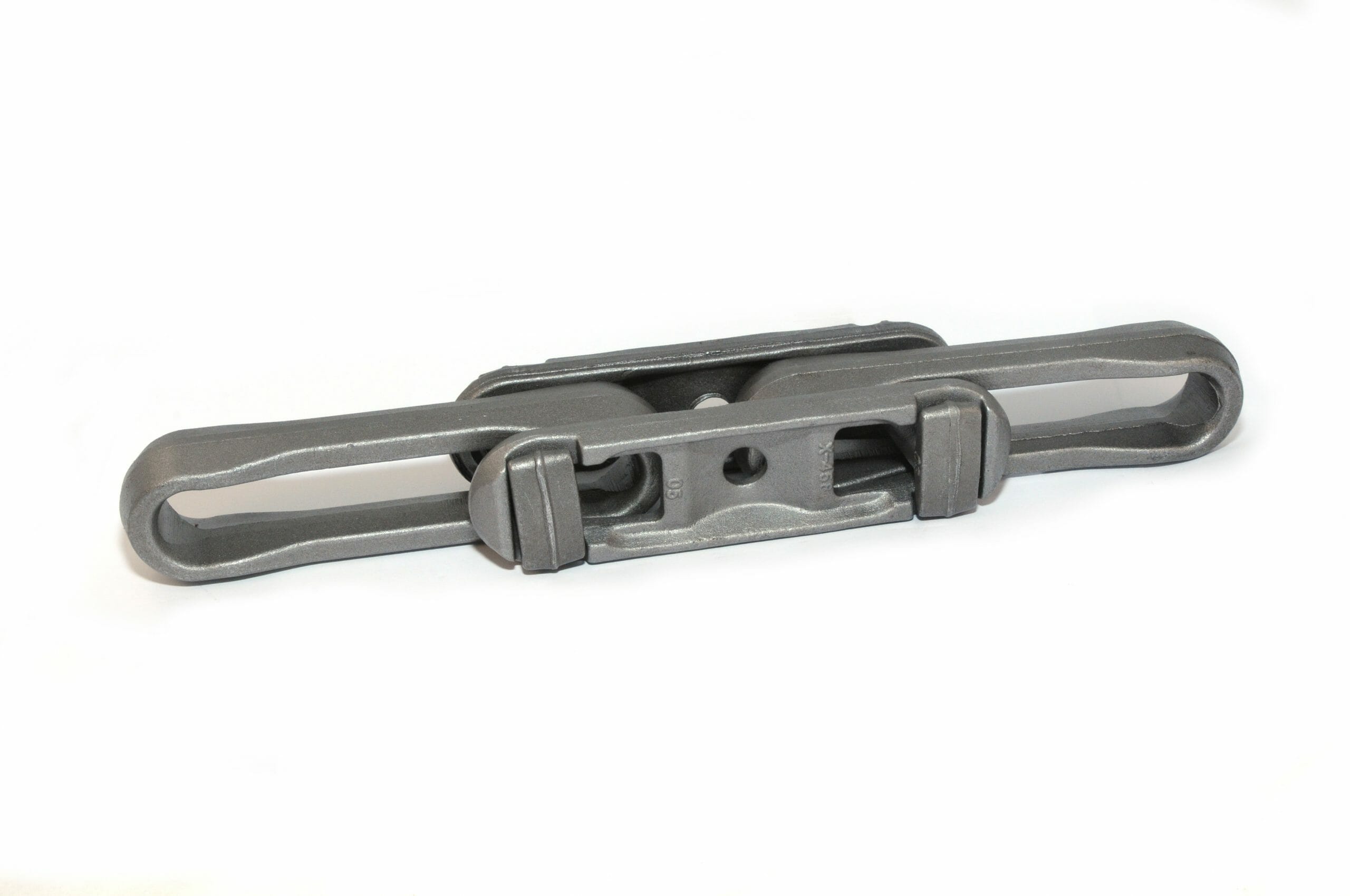

Drop Forged Rivetless Chain

– All PEER drop forged chains are commonly used in overhead conveyor systems and automated material handling systems.

– PEER drop forged chain offers increased flexibility.

– All chain components are heat treated to achieve greater durability and extended chain life.

– Precise pitch control and smooth bearing area for optimal wear life.

SKU: 5413 Categories: Drop Forged Rivetless Chain, Engineering Class Chain

Part No.	X458	X348	X678	468	X658	698	998	9118	9148
PEER Part No.	X458	X348	X678	468	X658	698	998	9118	9148
Industry No.	768	767	769	770	771	772	773	774	775

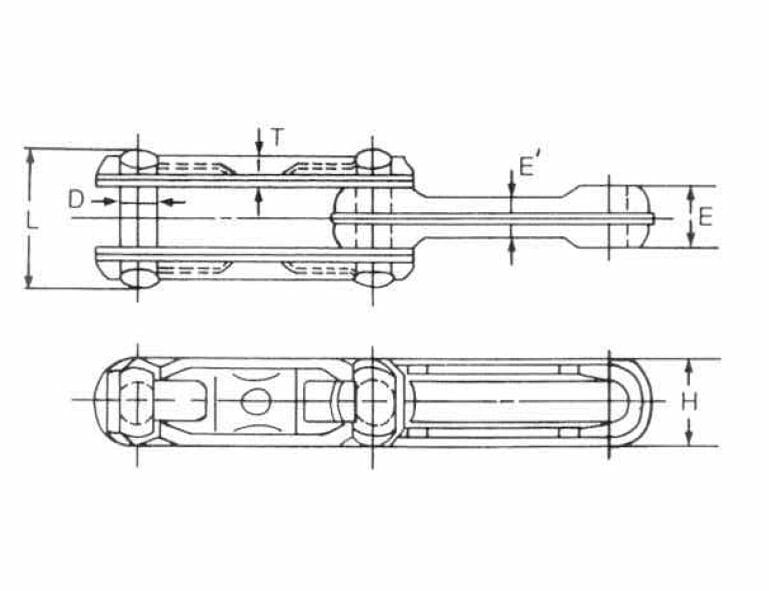

Pitch (P)	4	3	6	4	6	6	9	9	9
Pin Diameter (D)	0.625	0.5	0.875	0.75	0.62	1.12	1.12	1.38	1.75
Width Inside (E)	1.01	0.74	1.305	1.62	1.015	1.01	1.551	1.994	2.495
Overall Length Over Rivit Length	2.15	1.73	3.03	3.3	2.18	3.75	3.86	4.85	5.8
Side Bar Thickness (T)	0.481	0.395	0.705	0.45	0.331	0.586	0.619	0.75	0.811
Side Bar Height (H)	1.427	1.06	2	1.881	1.411	2.695	2.521	3.122	3.781
Apprx Links (10 feet)	30	40	20	30	20	20	13	13	13
Average Tensile Strength (Lbs.)	48000	24000	85000	70000	48000	130000	130000	220000	300000
