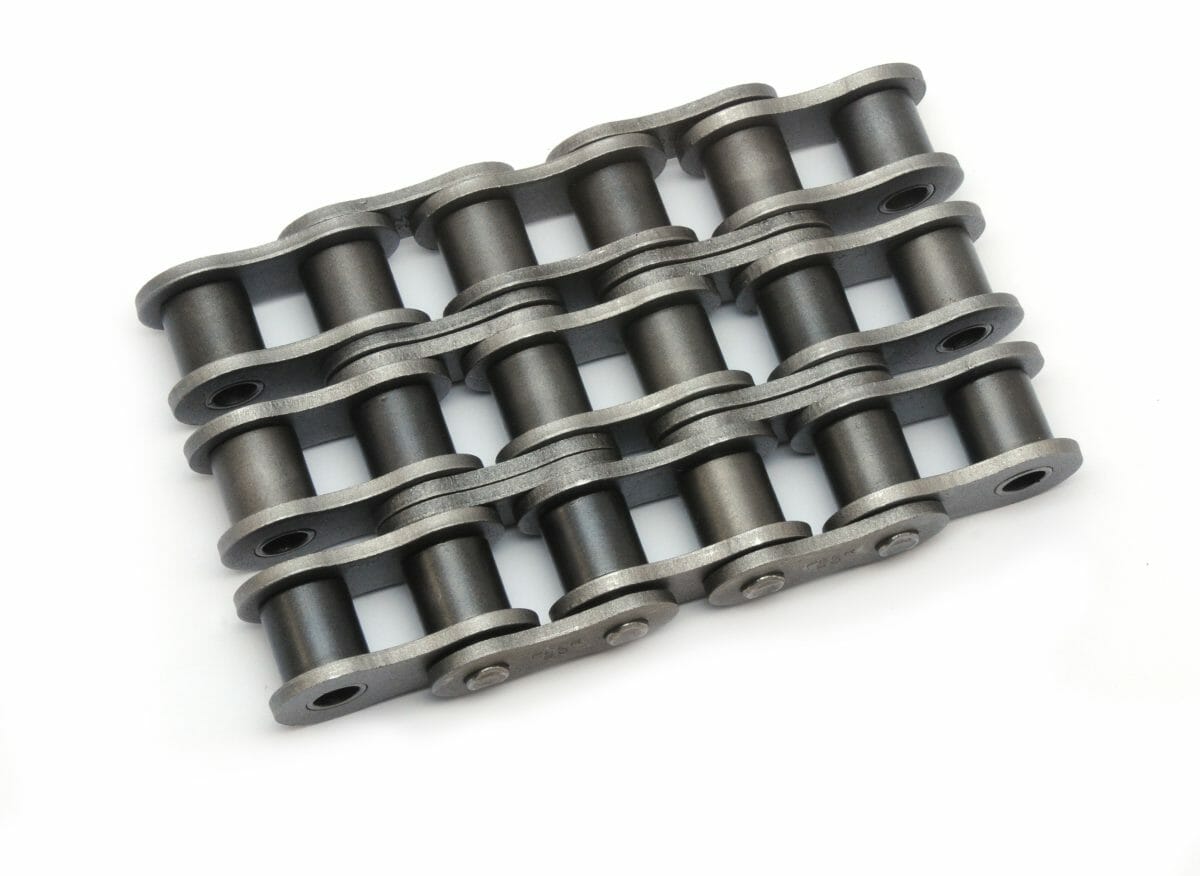

20B-3R – ISO British Standard Triple Strand Chain

Available in these sizes:

Add products to your quote inquiry to request a quote.

Must login with an existing account to access pricing and place an order.

Part No.	20B-3R
Industry No.	580

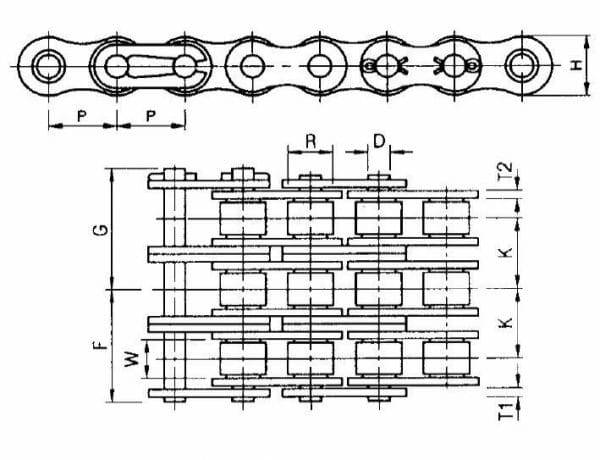

Pitch (P)	1.25
Pin Diameter (D)	0.401
Bushing Width (W)	0.77
Roller Width (W)	0.77
Roller Diam. (R)	0.75
Roller Diameter (R)	0.75
Plate Thickness (T2)	0.176
Plate Thickness (H)	1.04
Overall Width (G)	2.409
Unit of Measure (Inches or Millimeters)	in
Transverse pitch (K)	1.435
Plate Thickness (T1)	0.125
Average Tensile Strength (Lbs.)	69446
Average Weight Per Foot (Lbs./Ft.)	7.224
