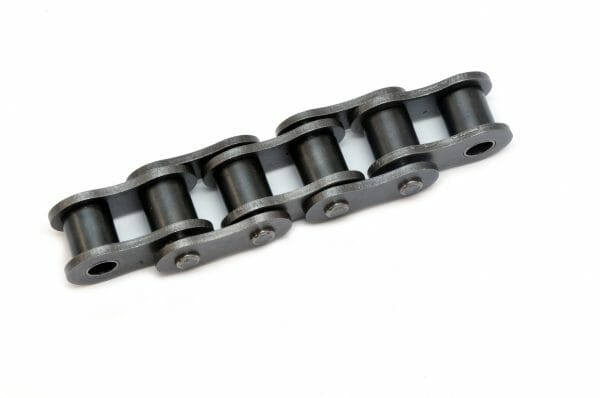

Quest ISO British Standard Single Strand Chain

– All PEER roller chains incorporate solid rollers enhancing rotation on the bushing while reducing impact loads on the sprocket tooth during operation.

– All chain components are heat treated to achieve maximum strength and greater wear resistance.

– All PEER roller chain is pre-loaded during the manufacturing process to minimize initial elongation.

– Hot dipped lubrication ensures 100% lubrication of all chain components to extend wear life and reduce maintenance costs.

– Quest chains feature solid bushings and solid rollers.

Add To Favorite Products List

Part No.	04BR Q	05BR Q	083R Q	06BR Q	08BR Q	10BR Q	12BR Q	16BR Q	20BR Q
Industry No.	238	239	241	242	244	245	256	259	262
Pitch (P)	0.236	0.315	0.5	0.375	0.5	0.625	0.75	1	1.25
Pin Diameter (D)	0.072	0.09	0.161	0.129	0.175	0.2	0.225	0.325	0.401
Bushing Width (W)	0.11	0.118	0.192	0.225	0.305	0.379	0.459	0.67	0.77
Roller Width (W)	0.11	0.118	0.192	0.225	0.305	0.379	0.459	0.67	0.77
Roller Diam. (R)	0.157	0.196	0.305	0.25	0.335	0.4	0.475	0.625	0.75
Roller Diameter (R)	0.157	0.196	0.305	0.25	0.335	0.4	0.475	0.625	0.75
Plate Height (H)	0.196	0.265	0.45	0.325	0.462	0.578	0.635	0.814	1.026
Plate Thickness (T2)	0.023	0.031	0.049	0.049	0.059	0.064	0.07	0.156	0.173
Plate Thickness (T1)	0.023	0.031	0.049	0.049	0.059	0.064	0.07	0.124	0.124
Average Tensile Strength (Lbs.)	720	1140	3300	2300	4070	5620	7380	16310	20060
