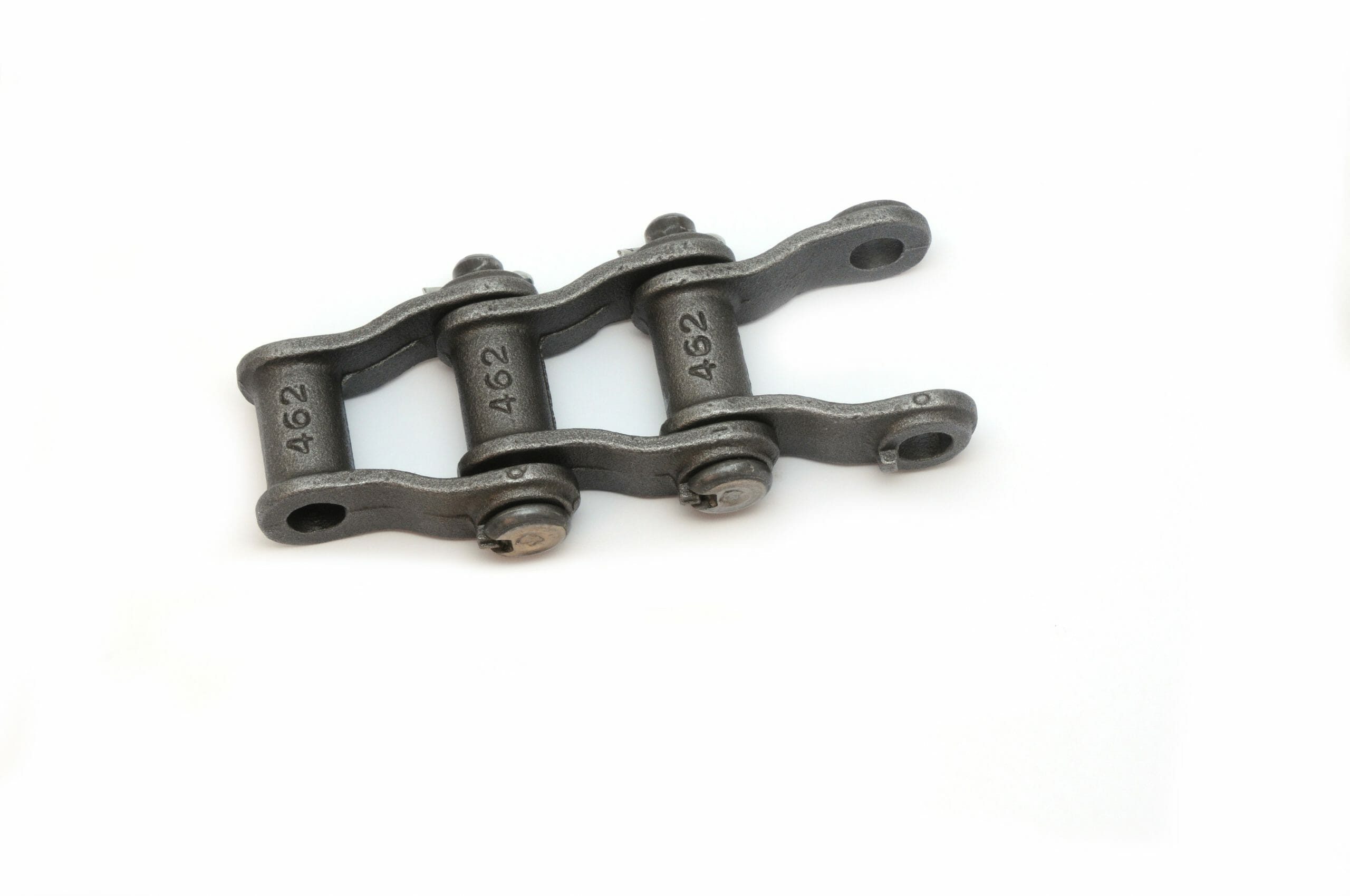

Cast 400 Class Pintle Chain

– Available with Riveted or Cottered construction.

– High strength with minimal weight.

– Closed bearing construction.

Part No.	442	445	452	455	462	477	488	4103
Industry No.	822	823	824	825	826	827	828	829

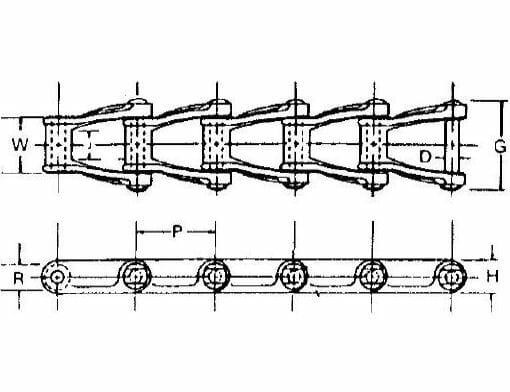

Pitch (P)	1.375	1.63	1.506	1.63	1.634	2.308	2.609	3.075
Pin Diameter (D)	0.31	0.31	0.375	0.375	0.438	0.438	0.438	0.75
Bearing Area Width Over Bearing (W)	1.06	1.06	1.088	1.12	1.44	1.25	1.618	1.875
Plate Height (H)	0.75	0.75	0.838	0.838	0.938	1	0.938	1.5
Overall Width Riveted (G)	1.875	1.875	2.06	2.06	2.375	2.25	2.75	3.25
Bearing Area Diam (R)	0.56	0.62	0.69	0.62	0.72	0.72	0.88	1.25
Average Tensile Strength (Lbs.)	6000	6000	7000	7300	8800	9600	11000	27000
Bearing Area Max Allow Sprocket Face (J)	0.62	0.69	0.62	0.69	0.88	0.69	0.94	1.12
Average Weight Per Foot (Lbs./Ft.)	1.4	1.5	2	1.9	2.5	2	2.9	5.7
