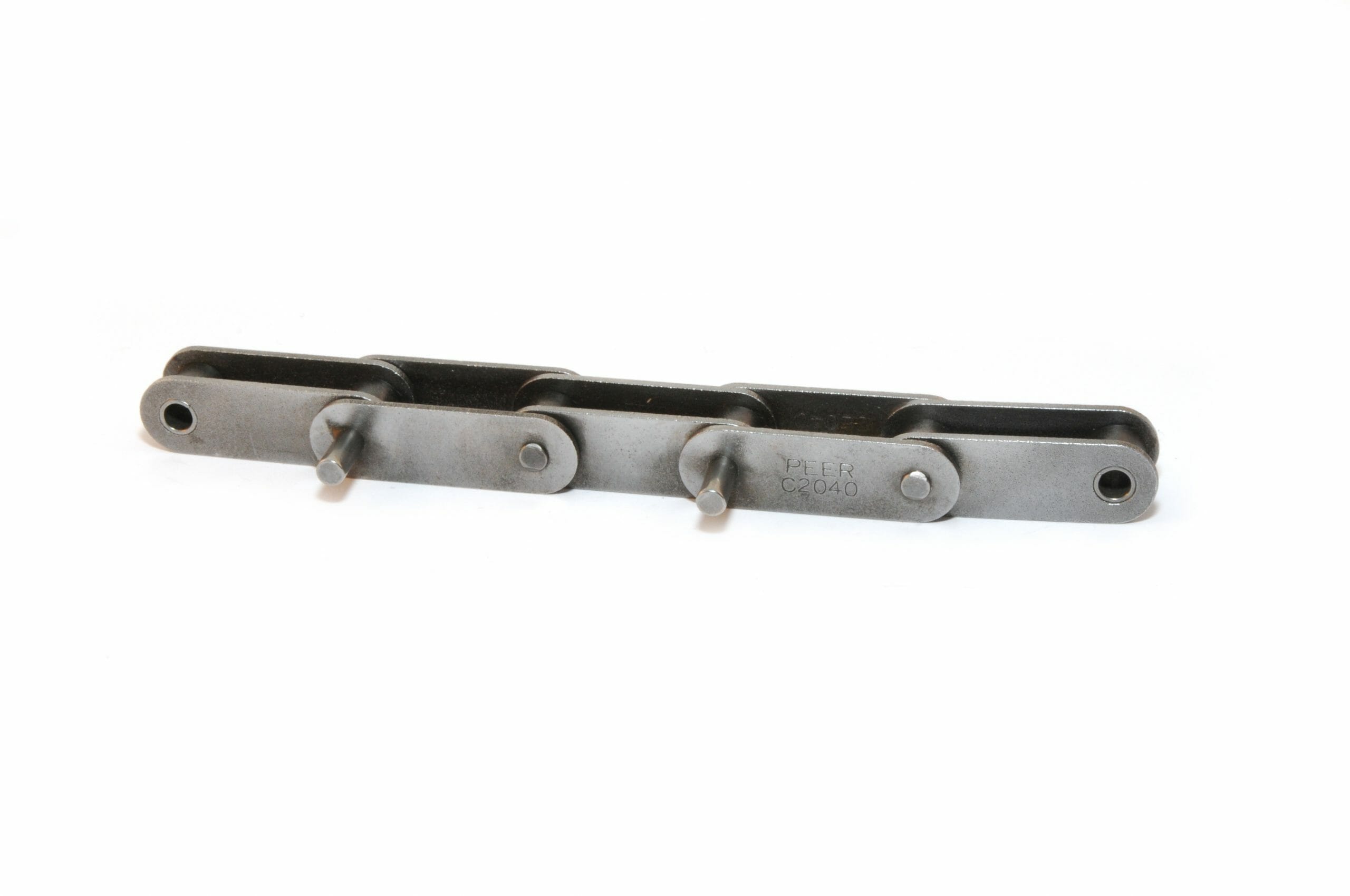

Agricultural Chain - D-1 Attachment
Agricultural Chain - D-1 Attachment - Image 2

Agricultural Chain – D-1 Attachment

Due to new designs and product improvements, dimensional data is subject to change.

Add To Favorite Products List Add To Favorite Products List
Add To Favorite Products List
Part No.C2040R D-1 / C2042R D-1C2050R D-1 / C2052R D-1C2060HR D-1 / C2062HR D-1C2080HR D-1 / C2082HR D-1C2100HR D-1 / C2102HR D-1C2120HR D-1 / C2122HR D-1C2060HR D-5C2060HR D-5C2060HR D-5
PEER Part No.C2040R D-1 / C2042R D-1C2050R D-1 / C2052R D-1C2060HR D-1 / C2062HR D-1C2080HR D-1 / C2082HR D-1C2100HR D-1 / C2102HR D-1C2120HR D-1 / C2122HR D-1C2060HR D-5C2060HR D-5C2060HR D-5
Industry No.103510361037103810391040103210321032
Pitch (P)11.251.522.531.51.51.5
Attachment Dimension (D)0.3130.3130.313
Attachment Dimension (I)1.6251.6251.625
Attachment Dimension (M)0.50.50.5
Attachment Dimension (R)0.3180.3180.318
Attachment Length (L)1.6251.6251.625
Unit of Measure (Inches or Millimeters)ininininininininin
A0.3750.4690.5620.750.9371.125
B0.1560.20.2340.3120.3750.437
E0.6610.8271.081.3981.7132.058
T0.060.080.1250.1560.1870.218
SKU: 5235 Category:
