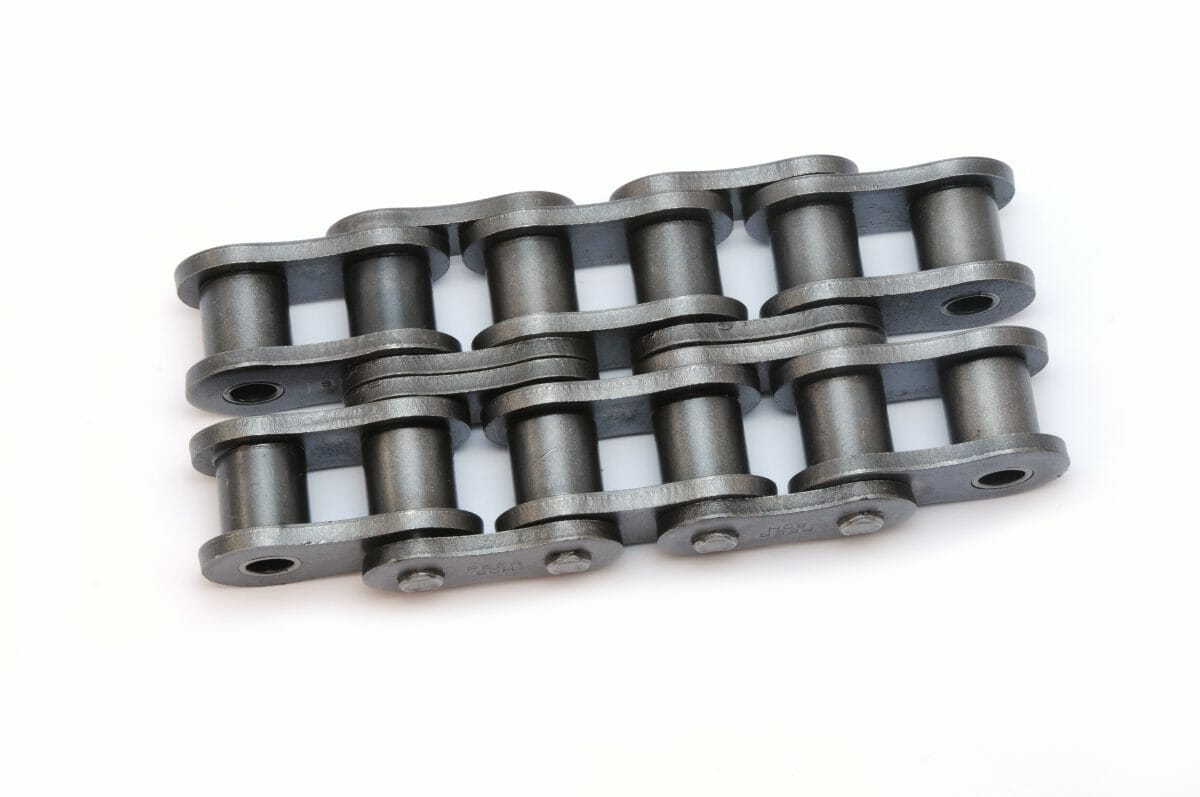

20B-2R – ISO British Standard Double Strand Chain

Part No.	20B-2R
Industry No.	468

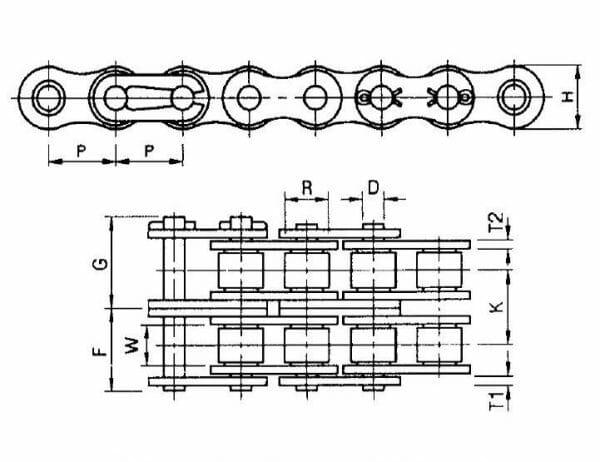

Pitch (P)	1.25
Pin Diameter (D)	0.401
Roller Diam. (R)	0.75
Roller Diam. (W)	0.77
Roller Diameter (R)	0.75
Plate Height (H)	1.04
Plate Thickness (T2)	0.176
Overall Width (G)	1.661
Unit of Measure (Inches or Millimeters)	in
Transverse pitch (K)	1.435
Plate Thickness (T1)	0.125
Average Tensile Strength (Lbs.)	46297
Average Weight Per Foot (Lbs./Ft.)	4.811
